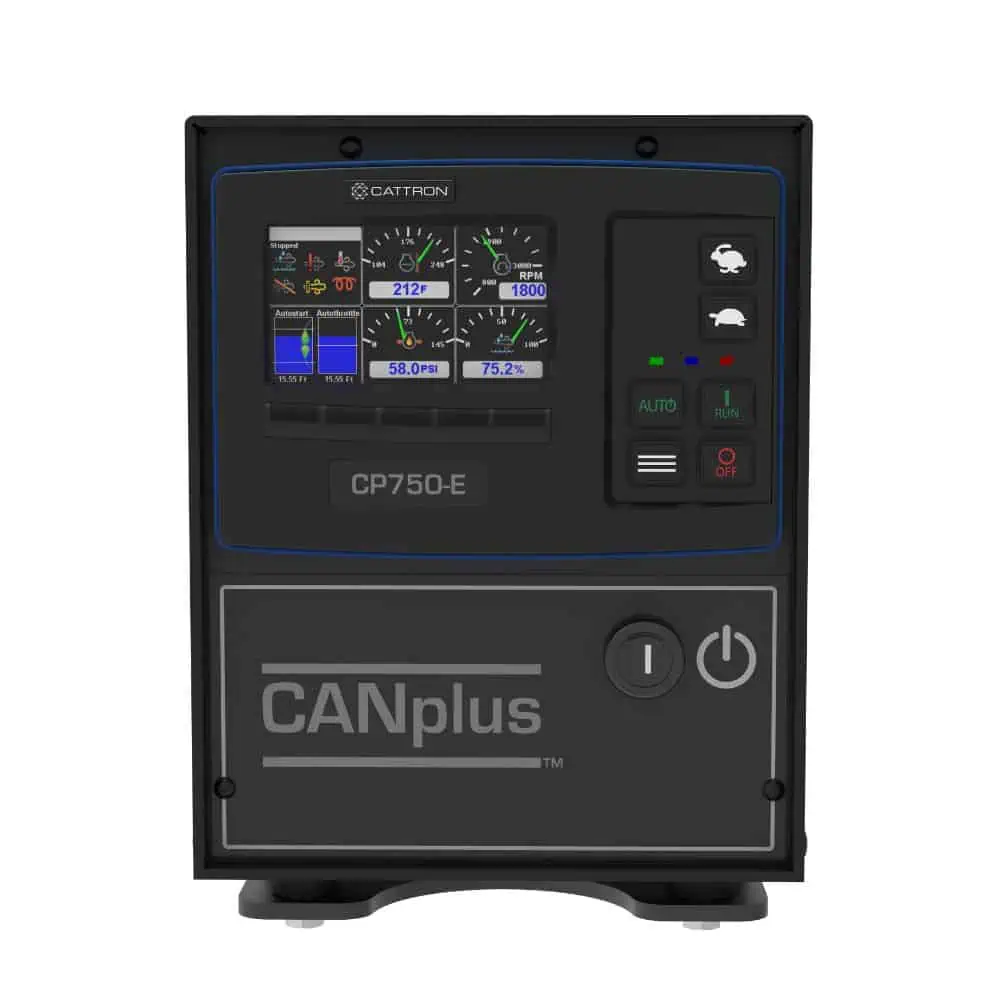

CANplus™ CP750-E
The CANplus™ CP750-E is an enhanced engine control panel with nine inputs and six outputs. It supports manual or autostart operations on electronically or mechanically governed engines and electric motor-driven equipment. The panel comes in your choice of an Aluflex or NEMA enclosure. It is typically used to measure floats, suction and vacuum pressure, discharge pressure, water level and flow. CANplus can also support applications running multiple pumps. The CP750-E is a direct replacement for the legacy CANplus CP750.
The panel offers optional integrated LTE communications, allowing remote tracking, monitoring, and control. It supports CANbus J1939 and Modbus RS-485 messages. Powered by RemoteIQ™, the CP750-E offers machine learning to detect patterns, analyze data and troubleshoot issues, including cavitation detection. By learning what normal operations look like for your specific application, RemoteIQ can alert operators when the panel is outside the normal range, improving operations and efficiency. CANplus products also include the built-in QR-Assist diagnostic tool, which generates QR codes that any smartphone or tablet can quickly scan to troubleshoot and expedite resolution.
- Nine inputs and six outputs
- For diesel-driven and electric motor-driven equipment
- QR-Assist service and maintenance diagnostic tool
- Advanced throttling capabilities
- Machine Learning to prevent downtime and costly repairs on pumps
- Sensorless cavitation detection
- Powered by RemoteIQ™
- Supports multi-pump control applications
- Tier 4F and Euro Stage V compliant
- Optional LTE communications
- 4.3” high-resolution, wide screen color display
- Direct replacement for the CANplus CP750
- See available CANplus accessories
-
Datasheets
-
User Manuals
-
Installation Manuals
-
Wiring Schematics
-
Flyers
-
Accessory Sheets
-
Solution Cards
-
Software
-
Product Videos
-
Miscellaneous
User Display
Intuitive, user-friendly menus are accessible via sunlight-viewable high-resolution 4.3” WQVGA color display
Advanced Throttling Options
Optimize engine performance with flexible throttling modes designed to match the needs of your application. Learn about the CANplus advanced throttling capabilities that provide greater control over engine-driven equipment.
Outputs
Two 10A power outputs (starter & ECU), two 1A outputs (one for pre-heat), and two 1A transducer power outputs
Inputs
Four switched inputs, two 4-20mA transducer inputs, and three resistive sender inputs
Machine Learning
Monitor equipment behavior in real time and detect performance deviations that may indicate developing problems. Learn how machine learning enhances equipment protection and helps operators make more informed maintenance decisions.
Sensorless Cavitation Detection
Detect pump cavitation before damage occurs using sensorless monitoring technology built into compatible CANplus control panels. Learn how sensorless cavitation detection helps improve pump protection, reliability and operational efficiency.
QR-Assist Diagnostics
Instantly access fault diagnostics and troubleshooting information by scanning a QR code displayed on the control panel. Learn how QR-Assist helps operators identify issues faster, reduce downtime and simplify equipment maintenance.
Event Manager
Can fully control engines based on configurable criteria – four digital inputs, two 4-20 mA analog transducer inputs, a battery-backed real-time clock or a combination of criteria
Configuration
Host USB port for configuration and updates using menus or through a Windows-based configuration program
Interface
- CANplus J1939
- Modbus RS-485
Autothrottle Maintain Point
Configurable 4-20mA transducer target values to dynamically throttle the engine to maintain a level
Autostart
Configurable start and stop events: autostart switch inputs, 4-20 mA transducer (level, pressure, flow, etc.), 24×7 scheduled run, and countdown-to-off timer
Autothrottle Profile
Configurable seven-stage autothrottle profile
Multi-Pump Control
Control up to six pumps from a single CANplus panel without requiring a PLC. Learn how multi-pump control simplifies system coordination, balances pump runtime and improves operational efficiency.
CANplus Software Suite
Built-in trace analyzer, engine simulator and configuration wizard tools are available to enable users to design and test complex pumping schemes before deploying assets to job sites.
- With Engine Simulator, users can simulate engine functions such as cranking, changing RPM, stopping, fault generation and testing panel behavior before deploying.
- Trace Analyzer enables simple, powerful, and efficient analysis of CAN traces by parsing, sorting, listing and charting all Parameter Group Numbers (PGNs) in a CAN trace to enhance productivity.
- The Configuration Wizard simplifies and expedites the basic configuration of a CANplus panel with an intuitive, menu-based approach to creating a standard configuration file.
Communications
Optional LTE CAT-M1 communications

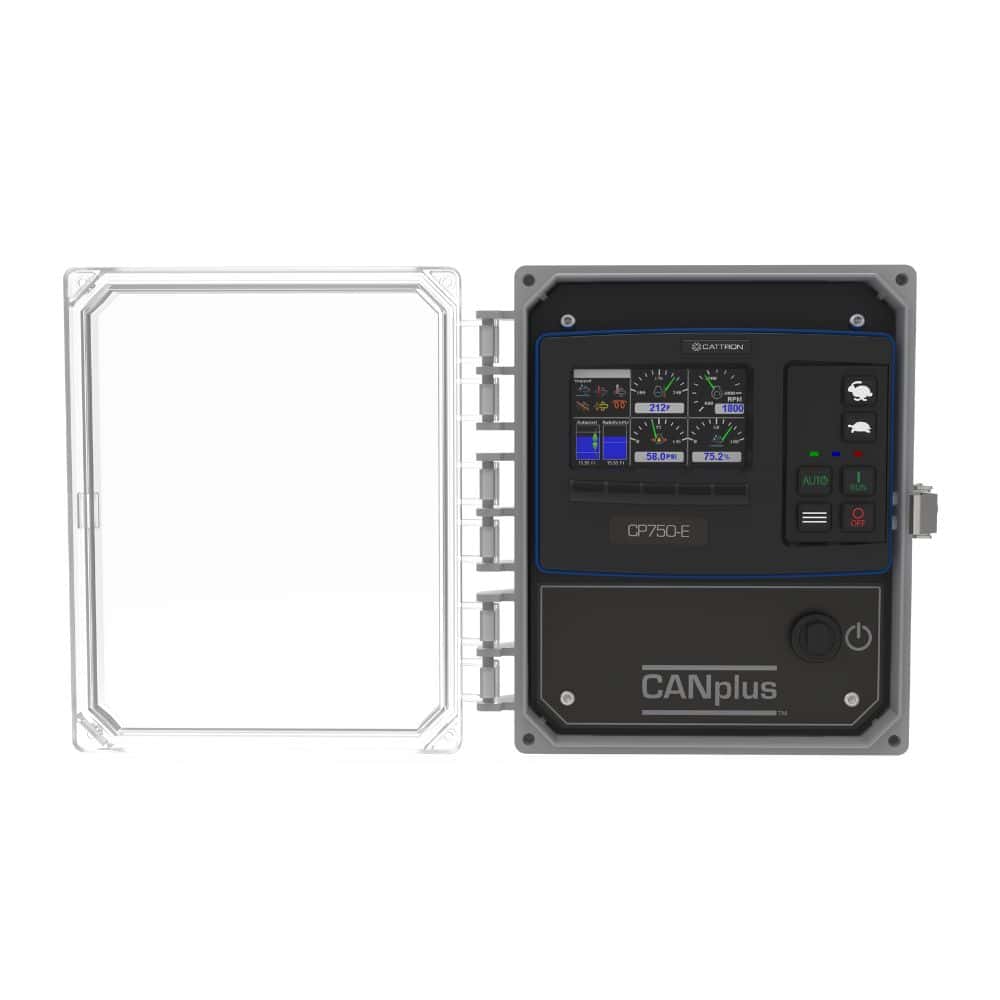

Enclosures
Aluflex or NEMA enclosures
Alternate Configurations
CP750-E can include an integrated emergency stop, AUXIO and Modbus (includes Modbus permanent license) or a combination of all three.
Vibration Monitoring
Protect critical pumps, motors and rotating equipment by continuously monitoring vibration levels and identifying developing mechanical issues early. Learn how vibration sensors help extend equipment life and improve maintenance planning.
CANplus Software Suite Configuration Kit
010-6750-01: Kit supports the trace analyzer, engine simulator and configuration wizard tools
Level Transducer Kits
010-1040-40: Level transducer, 10PSI, 40 ft wet w/ lifting eye, 35 ft dry cable
1800-0074: Cable, dual-ended cordset, RKU 5T/RCS-5T
Armored Level Transducer Kits
010-1040-31: Armored level transducer, 10PSI, 40 ft wet armored cable, 35 ft dry cable
Standard Float Kits
010-2040-00: Dual floats, 40 ft
010-2010-00: Dual floats, 100 ft
010-2040-12: Single float, 40 ft
Eco Float Kit
010-2040-88: Dual ecofloats, 40 ft
Vacuum Pressure Transducer Kit
010-1652-72: Vacuum pressure transducer, -14.7 to 200 PSI, 10x OP, 16 ft
010-1800-04: Digital temperature transducer, -58° to 302° F

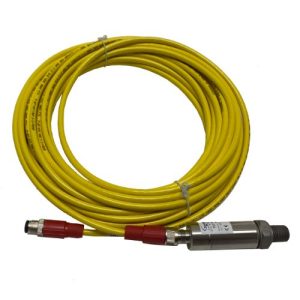

Pressure Transducer Kits
010-1652-09: Pressure transmitter, 0-200 PSI, 10x OP, 35 ft
010-1652-36: Pressure transmitter, 0-500 PSI, 10x OP, 35 ft
Flow Switch Kit
010-3124-09: Heavy duty TW24 flow switch, 8 inch, 1″ NPT SS, 20 ft cable
Pressure Transducers
503-1652-06: 0 to 200 PSI
503-1652-14: -14.7 to 14.7 PSI
503-1652-15: -14.7 to 200 PSI
503-1652-24: 0 to 100 PSI
503-1652-25: -14.7 to 100 PSI
503-1652-30: 0 to 30 PSI
503-1652-33: 0 to 500 PSI
503-1652-42: -14.7 to 0 PSI
503-1652-51: -14.7 to 300 PSI
503-1800-01: -58° to 302° F temp sensor
Vibration Sensors
503-2000-50: Acceleration vibration sensor, 0-5 GPS, 4-20mA, 1/4-28 mount
503-2000-55: Velocity vibration sensor, 0-1 IPS, 4-20mA, 1/4-28 mount
503-2000-51: Vibration mount, cement pad, 1/4-28 mount
503-2000-52: Vibration mount, magnetic, 1/4-28 mount
Throttle Actuator Kit
010-0752-16: CANplus actuator, 12V DTM04-6P, 44 inch flex cable
010-0752-34: CANplus actuator, 24V, DTM04-6P, flex
Engine and Adapter Harnesses
Contact us for full list of available engine and adapter harnesses
Transducer Cable
890-1003-07: 16 ft (5M), code B to A, M12
Antennas
010-5750-35: Antenna kit, LTE, magnetic mount, 12 ft cable
1500-0105: Sub-assembly, 5dbi antenna + magnets
633-5020-21: Antenna, GPS, LTE, BLTE, ADH mount, 10 ft length

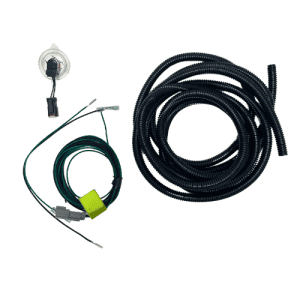

Fuel Level Sender Kits
010-5100-47: Fozmula fuel sensor, up to 100 mm
010-5100-10: Twinsite magentic dial for fuel

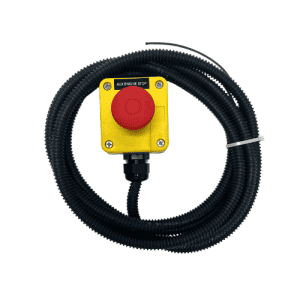

Auxiliary Stop Kit
010-9400-00: Auxiliary stop in enclosure, 120″, NO
Simulator Kit
010-1000-17: CANplus floats/transducer simulator
