Rail Toggle OCU

Rail Toggle

Operator Control Unit

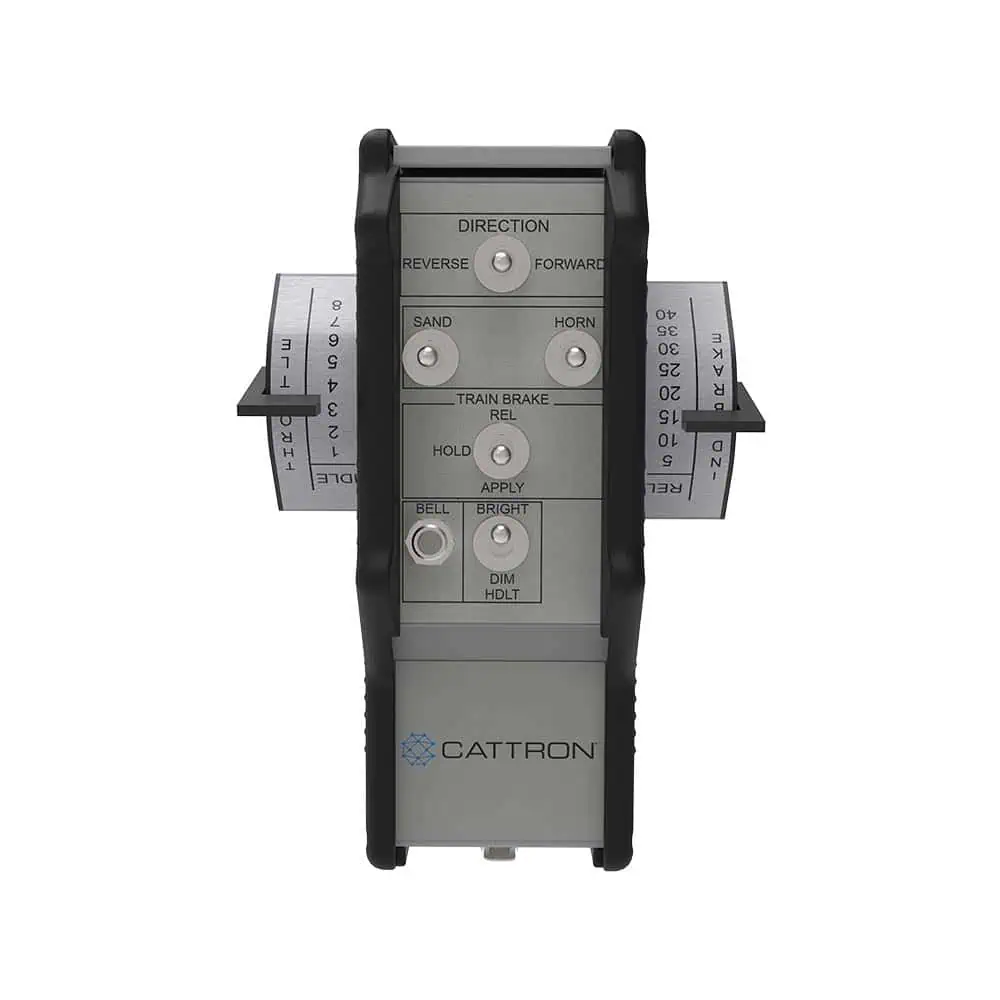

The Rail Toggle OCU is a highly rugged operator control unit that allows operators to test switches quickly without disassembling them. The aluminum enclosure features paddle levers that can be configured for forward or reverse-facing alignment. It is compatible with the Transport CC™, Transport TC™ and Transport QC™ locomotive remote control systems.

HIGHLIGHTS

  • Quickly test switches without disassembling
  • Can be configured for forward- or reverse-facing alignment
  • Highly configurable and customizable
  • Push-to-operate safety feature
  • Power on self-test
  • Designed for long battery life and ease of service
  • Designed to be worn on the chest or belt loop
  • Works with Transport CC™, Transport TC™ and Transport QC™

Contact Us

Datasheets Transport Products

Shock Proof Construction

The toggle controller is constructed using end caps utilizing a heavy rubber coating and integral switch guards that protect the switches from damage during a drop

Battery Indicator

Two-stage LED battery indicator with audible beep

Interface

Highly configurable and customized based on the application

Compliance

Designed to comply with EN954

Switches

Available with toggle, pushbutton, paddle and/or rotary switches

Functions

Up to 40 digital and/or six analog

Range

Typical one-mile line-of-sight

External Antenna

External antenna for increased RF coverage and range

ISO Certification

Manufactured in an ISO 9001:2015 certified operation

Warranty

Standard one-year product warranty

Internal Antenna

Integrated antenna design allows for maximum range in a wide variety of user worn configurations

Keylock Select Switch

Keylock locomotive select switch allows the user to quickly choose between different locomotives

Talkback/Feedback

Up to 8 LEDs or an LED display provides additional information to the operator

Vest Harness

Has a variety of adjustments for ideal weight distribution and operator comfort, multiple sizes available

Americas Non-FRA Regulated

Railcar Movers, Grain Material Movement, Coal Material Movement, Aluminum Material Movement, Steel Material Movement, Aggregates, Food and Beverage, Chemical, Agriculture
