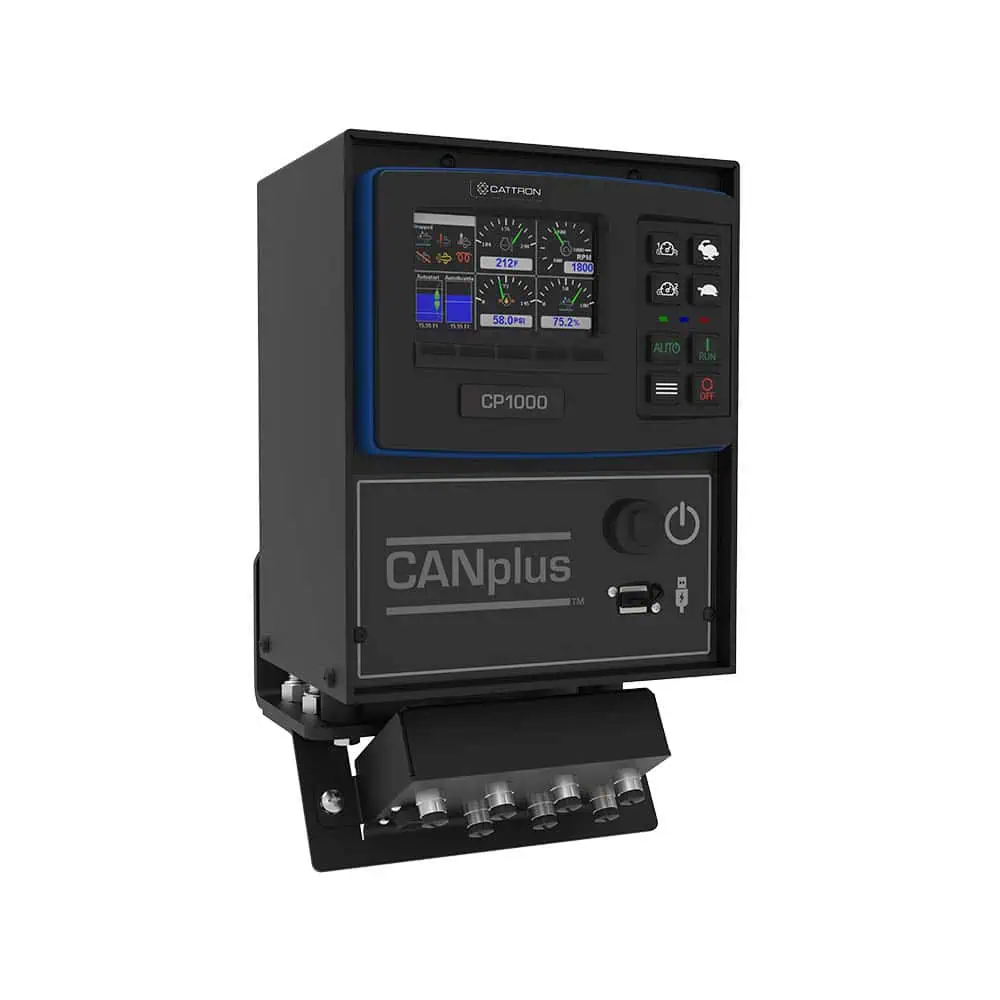

CANplus™ CP1000
The CANplus™ CP1000 is a comprehensive engine control panel with 21 inputs and ten outputs. It supports manual or autostart operations on electronically or mechanically governed engines and electric motor-driven equipment. It is typically used to measure floats, suction and vacuum pressure, discharge pressure, water level and water flow. CANplus can also support applications running multiple pumps.
Each control panel integrates telemetry. The LTE option allows remote tracking, monitoring and control, and enables local remote monitoring and control via the Device Manager app.
Powered by RemoteIQ™, the CP1000 offers machine learning to detect patterns, analyze data and troubleshoot issues, including cavitation detection. By learning what normal operations look like for your specific application, RemoteIQ can alert operators when the panel is outside the normal range, improving operations and efficiency. CANplus products also include the built-in QR-Assist diagnostic tool, which generates QR codes that any smartphone or tablet can quickly scan to troubleshoot and expedite resolution.
- 21 inputs and 10 outputs
- LTE, satellite or wireless app communications
- Support for diesel-driven and VFD electric motor-driven machines and pumps
- QR-Assist service and maintenance diagnostic tool
- Advanced throttling capabilities
- Machine Learning to prevent downtime and costly repairs on pumps
- Supports multi-pump control applications
- Sensorless cavitation detection
- Powered by RemoteIQ™
- Tier 4F and Euro Stage V compliant
- 4.3″ high-resolution, wide-screen color display
- See available CANplus accessories
-
Datasheets
-
User Manuals
-
Quick Start Guides
-
Installation Manuals
-
Wiring Schematics
-
Flyers
-
Accessory Sheets
-
Solution Cards
-
Firmware
-
Software
-
Product Videos
-
Support Videos
- How to Use RemoteIQ QR-Assist on CANplus Panels
- Engine Simulator and Trace Analyzer Using CANplus Software Suite
- How to Update and Download CANplus Suite
- How to Use RemoteIQ Using LTE on CP1000
- How to Use Throttle by Maintain Point on CP1000
- How to Use Pause at Run on CP1000
- How to Use Linear Throttling on CP1000
- How to Do Dynamic Throttling on CP1000
- How to Use Auto-Manual Toggle Mode on CP1000
- How to Use Controlled Off on CP1000
- How to Use Autoramp Profile on CP1000
- How to Use Dual Float Empty Setup and Simulation on CP1000
- How to Use Transducer with Backup Switches on CP1000
- How to Use Tier 4F Euro Stage V with CANplus RT Control Panel
-
Miscellaneous
User Display
High-resolution, sunlight-viewable color display with intuitive, user-friendly menus. (43c high-resolution 4.3” WQVGA color display)
Advanced Throttling Capabilities
Optimize engine performance with flexible throttling modes designed to match the needs of your application. Learn about the CANplus advanced throttling capabilities that provide greater control over engine-driven equipment.
Variable Frequency Drive (VFD) Control
Manage electric motor-driven pumps through a single control platform that supports both diesel and VFD-powered equipment. Learn how CANplus VFD integration streamlines pump control, monitoring and remote management across mixed equipment fleets.
Outputs
Built-in alarm, two 10A power outputs (starter & ECU), two isolated power outputs (20A and 10A), four 1A outputs (one for pre-heat), two 1A transducer power outputs, yellow/red fault/warning, blue LED for emissions indication, green Autostart LED, external E-Stop (Normally closed, Grounded closed)
Inputs
Five display buttons, eight switch inputs, six 4-20mA transducer inputs, two fault switch inputs (oil & temp), three resistive sender inputs, two pulse meters (one can be used for Tach Alternator)
Event Manager
Can fully control engines based on configurable criteria – eight digital inputs, six 4-20 mA analog transducer inputs, a battery-backed real-time clock or a combination of criteria
QR-Assist Diagnostics
Instantly access fault diagnostics and troubleshooting information by scanning a QR code displayed on the control panel. Learn how QR-Assist helps operators identify issues faster, reduce downtime and simplify equipment maintenance.
Configuration
Simple configuration using menus or through a simple, straightforward Windows-based configuration program
Interface
- CANplus J1939
- Modbus RS-485
Autostart
Configurable start and stop events: autostart switch inputs, 4-20 mA transducer (level, pressure, flow, etc.), 24×7 schedule run, and countdown-to-off timer
Machine Learning
Monitor equipment behavior in real time and detect performance deviations that may indicate developing problems. Learn how machine learning enhances equipment protection and helps operators make more informed maintenance decisions.
Sensorless Cavitation Detection
Detect pump cavitation before damage occurs using sensorless monitoring technology built into compatible CANplus control panels. Learn how sensorless cavitation detection helps improve pump protection, reliability and operational efficiency.
Autothrottle Profile
Configurable seven-stage autothrottle profile
Multi-Pump Control
Control up to six pumps from a single CANplus panel without requiring a PLC. Learn how multi-pump control simplifies system coordination, balances pump runtime and improves operational efficiency.
CANplus Software Suite
Built-in trace analyzer, engine simulator and configuration wizard tools are available to enable users to design and test complex pumping schemes before deploying assets to job sites
- With Engine Simulator, users can simulate engine functions such as cranking, changing RPM, stopping, fault generation and testing panel behavior before deploying.
- Trace Analyzer enables simple, powerful, and efficient analysis of CAN traces by parsing, sorting, listing and charting all Parameter Group Numbers (PGNs) in a CAN trace to enhance productivity.
- The Configuration Wizard simplifies and expedites the basic configuration of a CANplus panel with an intuitive, menu-based approach to creating a standard configuration file.
Satellite Communications
GNSS-compatible GPS receiver for satellite communication at remote locations
Vibration Monitoring
Protect critical pumps, motors and rotating equipment by continuously monitoring vibration levels and identifying developing mechanical issues early. Learn how vibration sensors help extend equipment life and improve maintenance planning.
CANplus Software Suite Configuration Kit
010-6750-01: Kit supports the trace analyzer, engine simulator and configuration wizard tools
Level Transducer Kits
010-1040-40: Level transducer, 10PSI, 40 ft wet w/ lifting eye, 35 ft dry cable
1800-0074: Cable, dual-ended cordset, RKU 5T/RCS-5T
Armored Level Transducer Kits
010-1040-31: Armored level transducer, 10PSI, 40 ft wet armored cable, 35 ft dry cable
Standard Float Kits
010-2040-00: Dual floats, 40 ft
010-2010-00: Dual floats, 100 ft
010-2040-12: Single float, 40 ft
Eco Float Kit
010-2040-88: Dual ecofloats, 40 ft
Vacuum and Temperature Transducer Kits
010-1652-72: Vacuum pressure transducer, -14.7 to 200 PSI, 10x OP, 16 ft
010-1800-04: Digital temperature transducer, -58° to 302° F
Pressure Transducer Kits
010-1652-09: Pressure transmitter, 0-200 PSI, 10x OP, 35 ft
010-1652-36: Pressure transmitter, 0-500 PSI, 10x OP, 35 ft
Flow Switch Kit
010-3124-09: Heavy duty TW24 flow switch, 8 inch, 1″ NPT SS, 20 ft cable
Pressure Transducers
503-1652-06: 0 to 200 PSI
503-1652-14: -14.7 to 14.7 PSI
503-1652-15: -14.7 to 200 PSI
503-1652-24: 0 to 100 PSI
503-1652-25: -14.7 to 100 PSI
503-1652-30: 0 to 30 PSI
503-1652-33: 0 to 500 PSI
503-1652-42: -14.7 to 0 PSI
503-1652-51: -14.7 to 300 PSI
503-1800-01: -58° to 302° F temp sensor
Vibration Sensors
503-2000-50: Acceleration vibration sensor, 0-5 GPS, 4-20mA, 1/4-28 mount
503-2000-55: Velocity vibration sensor, 0-1 IPS, 4-20mA, 1/4-28 mount
503-2000-51: Vibration mount, cement pad, 1/4-28 mount
503-2000-52: Vibration mount, magnetic, 1/4-28 mount
Throttle Actuator Kit
010-0752-16: CANplus actuator, 12V DTM04-6P, 44 inch flex cable
010-0752-34: CANplus actuator, 24V, DTM04-6P, flex
Engine and Adapter Harnesses
Contact us for full list of available engine and adapter harnesses
Transducer Cable
890-1003-07: 16 ft (5M), code B to A, M12
Antennas
010-5750-35: Antenna kit, LTE, magnetic mount, 12 ft cable
1500-0105: Sub-assembly, 5dbi antenna + magnets
633-5020-21: Antenna, GPS, LTE, BLTE, ADH mount, 10 ft length
Fuel Level Sender Kits
010-5100-47: Fozmula fuel sensor, up to 100 mm
010-5100-10: Twinsite magentic dial for fuel
Auxiliary Stop Kit
010-9400-00: Auxiliary stop in enclosure, 120″, NO
Simulator Kit
010-1000-17: CANplus floats/transducer simulator
