Environmental Protection

IP65-rated enclosure designed to help protect against environmental elements such as dust and water exposure. Learn how IP ratings support industrial wireless remote control applications.

Housing

High-impact, fiber-reinforced nylon

Operating Range

Operating range up to 600 feet, depending on application and operating conditions. Learn what affects operating range in industrial wireless remote control systems.

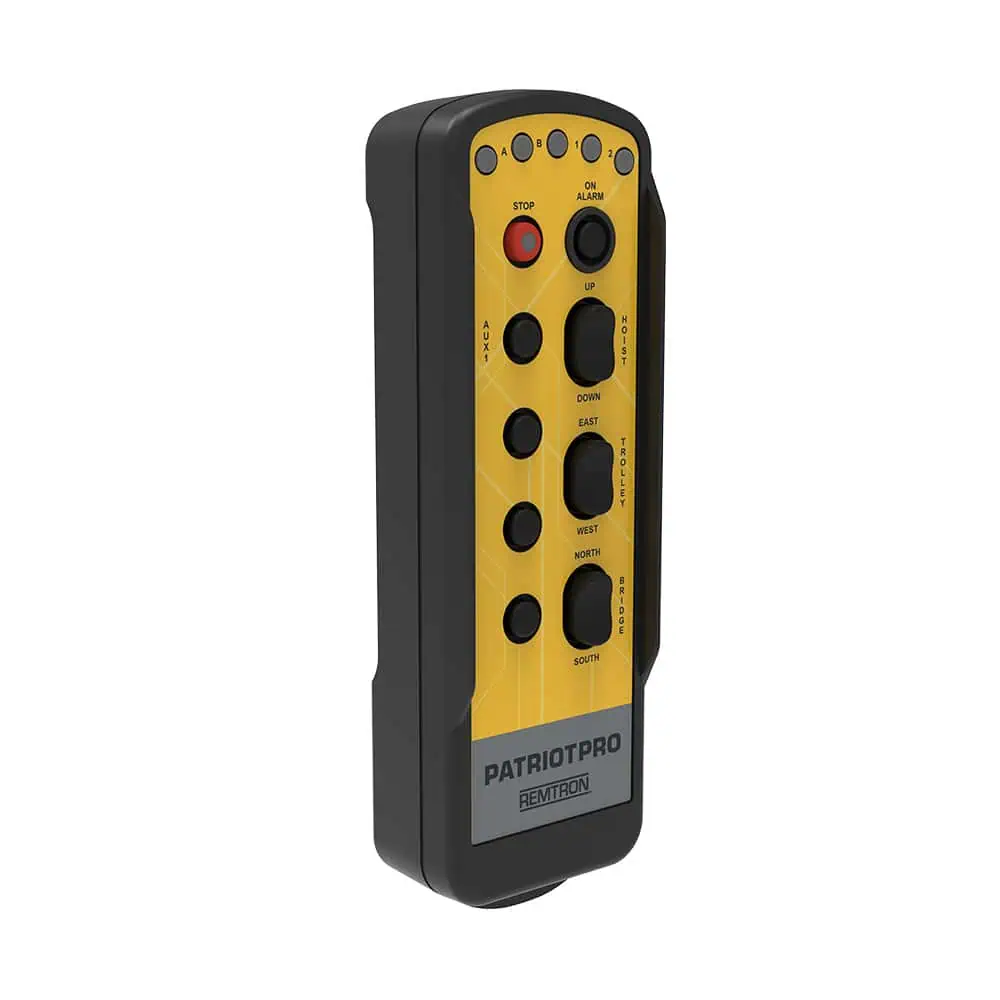

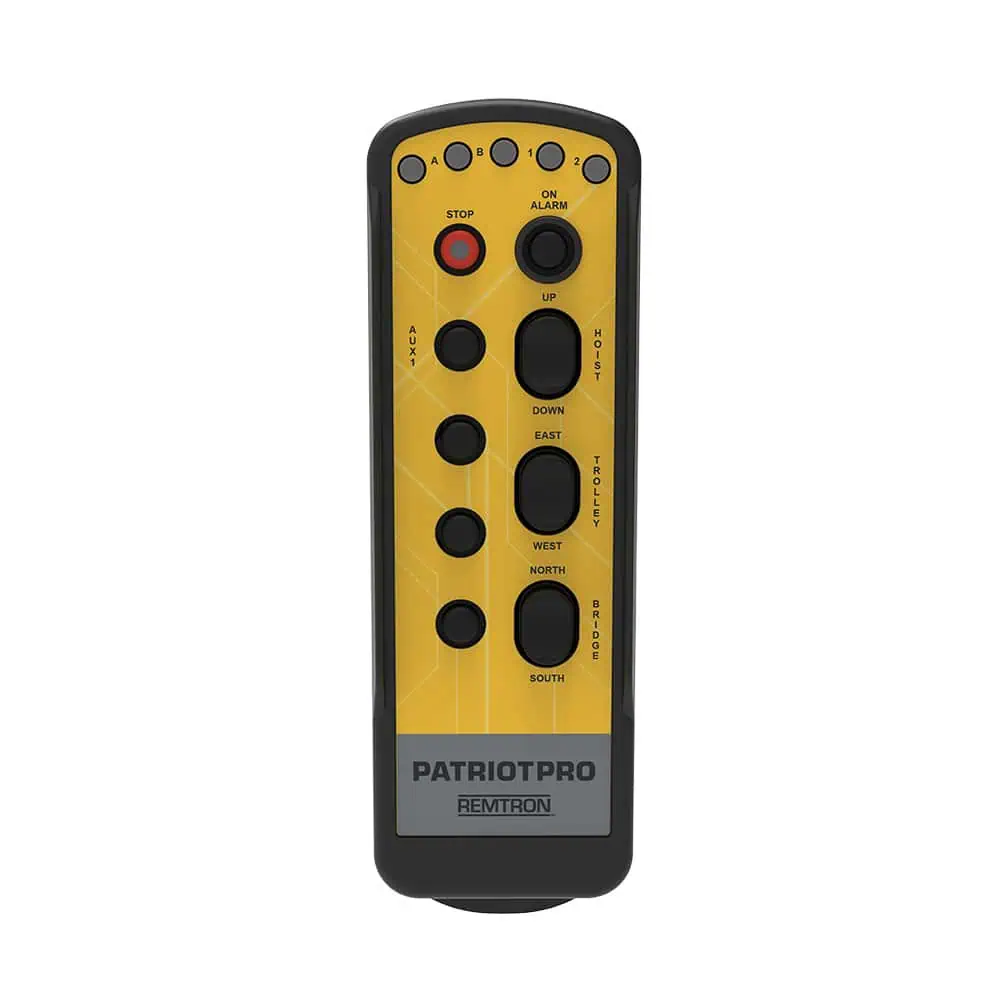

Standard System Configurations for PatriotPro

• 25S11PRO: 3 motion/2 speed + alarm
• 25S15PRO: 3 motion/2 speed, A/B/Both Hoist Select + alarm
• 25S11PRO4A: 3 motion/2 speed, 4 auxiliary controls + alarm
• 25S15PRO4M: 3 motion/2 speed, 1 motion/1 speed, Lights, and A/B/Both Hoist Select + alarm
• 25S15PRO2A: 3 motion/2 speed, 2 auxiliary controls, Lights, and A/B/Both Hoist Select + alarm
• 25S15PRO2MCU (sub-GHz only): 3 motion/2 speed, 3 auxiliary controls, Lights, and A/B/Both Hoist Select with 2 dedicated receivers for trolley/hoist, and bridge + alarm
• 25S15PRO3MCU (sub-GHz only): 3 motion/2 speed, 3 auxiliary controls, Lights, and A/B/Both Hoist Select with 3 dedicated receivers for trolley, hoist, and bridge + alarm
• 25S11PROPC (sub-GHz only): 3 motion/2 speed, 3 auxiliary controls, Pitch and Catch feature + alarm (Does not include a spare – programmed OCU A and OCU B)
• 25S15PROPC (sub-GHz only): 3 motion/2 speed, 2 auxiliary controls, A/B/Both Hoist Select, Pitch and Catch feature + alarm (Does not include a spare – programmed OCU A and OCU B)
• 25S11PROFCFS (sub-GHz only): 3 motion/2 speed, 3 auxiliary controls, A/B/Both Hoist Select, FCFS Feature + alarm (Does not include a spare – programmed OCU A and OCU B)
• 25S15PROFCFS (sub-GHz only): 3 motion/2 speed, 2 auxiliary controls, FCFS Feature + alarm (Does not include a spare – programmed OCU A and OCU B)

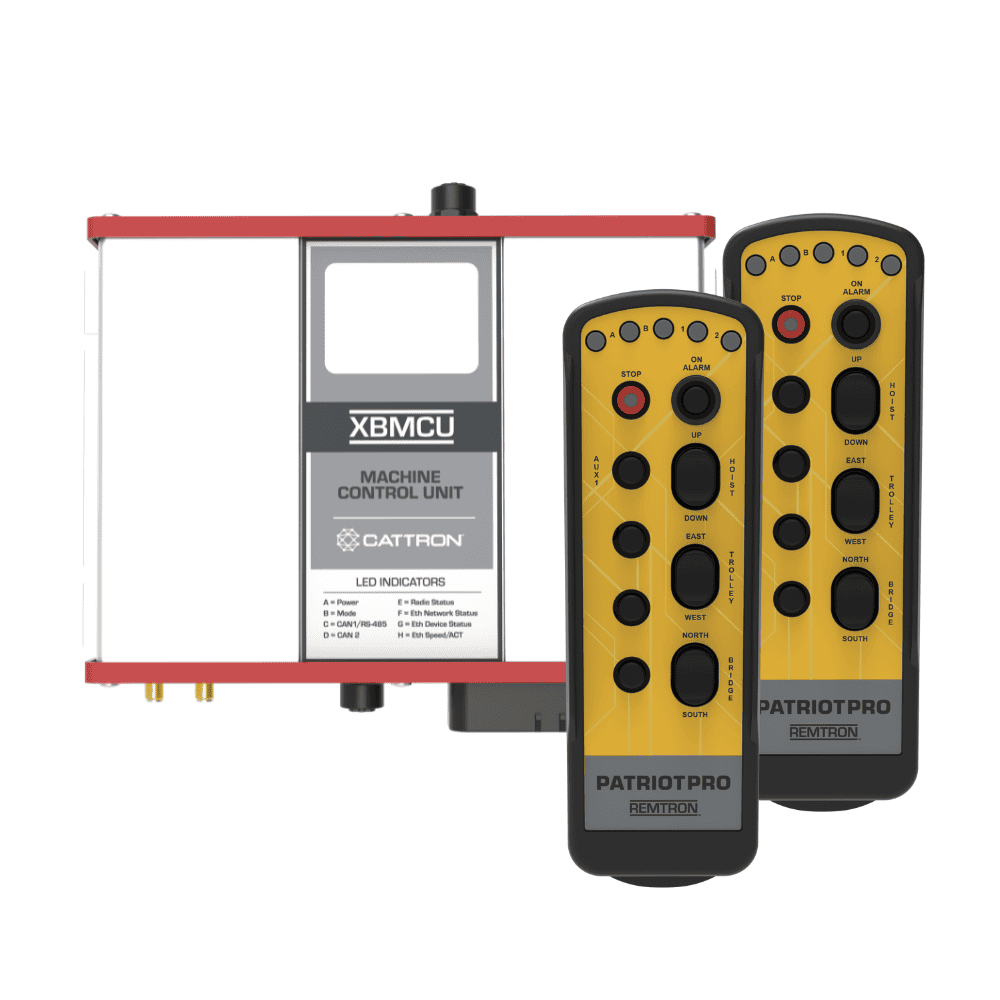

Three MCU Configuration

One OCU to one Bridge MCU and two Trolley Hoist MCU for festoonless cranes (sub-GHz only)

First Come First Serve (FCFS)

Allows use of multiple transmitters with one receiver, one at a time. When the receiver receives a valid signal, it stops scanning and responds only to that transmitter’s signal. When the signal is no longer being received (i.e., the transmitter has been turned off or is out of range, or the operator initiates a release), the receiver again scans until another valid signal is received. (sub-GHz only)

Pitch and Catch

A method used to transfer control from one operator to another without pausing the operation. The “Pitch” operation initiates the transfer of control from OCU A. OCU A then enters passive mode without shutting down the machine. OCU B may then “Catch” control of the machine by moving into active mode (sub-GHz only)

Wireless Communication Safety

Black channel communication technology supports safe, reliable wireless communication in industrial control applications. Learn how black channel communication supports safe and reliable wireless communication.

Battery Type

• Rechargeable battery pack
• AA standard alkaline batteries; lasts beyond 65 hours with typical use

CattronLink Management App

CattronLink app enables continuous performance and simplifies configuration and feature upgrades via desktop or mobile app

Enhanced Status Indicators

Multiple LEDs, haptic vibration and distinctive click indication between the first and second steps

Closed Box Configuration

Wireless configuration of frequency and function enables simple and rapid deployment of spares

RFID Security and Rapid Configuration

Allocate user ID security and “as needed” reconfiguration of the operator control unit to a specific machine

Compliance

• PL-d Safety level in compliance with ISO 13849

Cyber Resilience Act

Meets the requirements of the European Cyber Resilience Act

Diagnostic Data Collection

Data and diagnostics are logged and available

AB Selector Switch

Allows an operator to switch between trolley and hoists that are operated on a single bridge

Private Label

Ability to customize the label of the OCU to include your brand or specific application identity

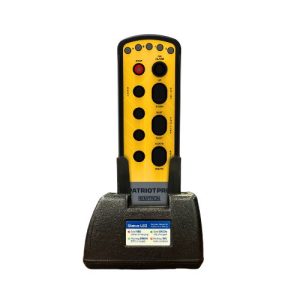

Rechargeable Docking Station

Standard desk mount or optional wall mount adapter
