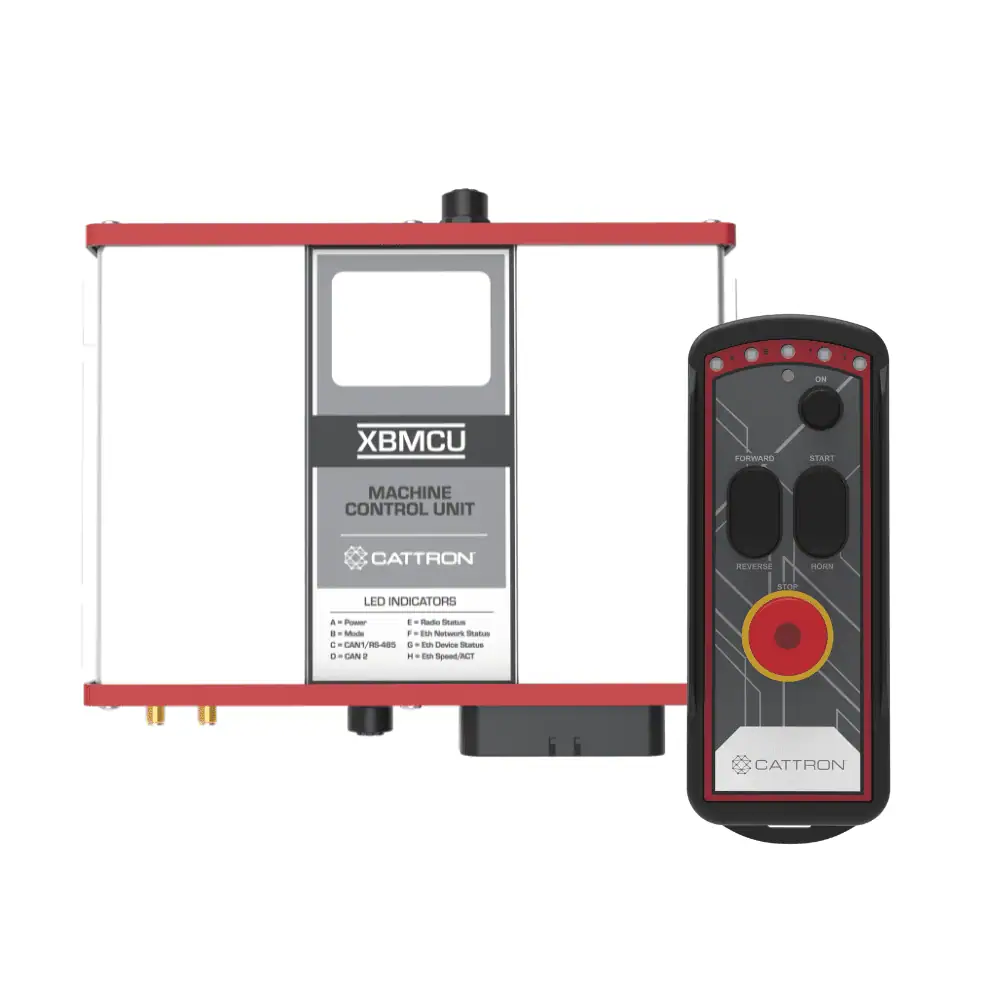

The Safe-D-Stop™ is a PL-d wireless e-stop system that enhances the safety of machine operators. It is designed specifically for machine safety applications that require a high visibility, illuminated Stop switch. It can be used with overhead cranes & hoists, conveying systems, on and off-highway mobile equipment, manufacturing, transportation and warehousing.
- One Start/Reset button
- Two PL-d reversing rocker switches for safe auxiliary functions
- IP65 enclosure
- Multiple LEDs and haptic feedback
- Long-life switches measured in millions of cycles
- Works with the 10R-ASO MCU and CattronLink™
-
Datasheets
- Safe-D-Stop Datasheet - English
- Safe-D-Stop Datasheet - Brazilian Portuguese
- Safe-D-Stop Datasheet - German
- Safe-D-Stop Datasheet - Spanish
- CattronLink Datasheet - English
- CattronLink Datasheet - Brazilian Portuguese
- CattronLink Datasheet - Chinese
- CattronLink Datasheet - French Canadian
- CattronLink Datasheet - German
-
User Manuals
-
Quick Start Guides
-
Configuration Sheets
-
Accessory Sheets
-
Solution Cards
-
Software
-
Product Videos
IP65 Enclosure
IP65 enclosure offers protection against harsh environments
Long-Life Switches
Long-life switches measured in millions of cycles
Battery Life
Battery lasts beyond 65 hours with typical use; AA standard alkaline batteries
Enhanced Status Indicators
Enhanced status indicators include multiple LED’s and haptic feedback
Closed Box Bluetooth Configuration
Wireless closed box Bluetooth® configuration of frequency and function for simple and rapid deployment of spares
Diagnostic Data Collection
Diagnostic data collection - essential data and diagnostics are logged and available over Bluetooth® or SD Card
RFID Security and Rapid Configuration
RFID security and re-configuration enable user ID security and "as needed" reconfiguration of the controller to a specific machine
PL-d Safety Level
PL-d safety level based on black channel telegram for both control and feedback and a redundant dual-processor architecture
Switch Ergonomics
Ergonomic switches are updated with an easy-to-use and intuitive, tactile feel that make it easy to differentiate between steps while wearing gloves
Global Frequencies
Global licensed and unlicensed frequencies offer support in the 915MHz, 868MHz, 433MHz and 2.4GHz (unlicensed) and 450-470MHz (licensed) spectrums
Customizable Switch Layout
Customizable switch layout to meet specific requirements and white label programs
Illuminated Stop Switch
Illuminated PL-d stop switch
Rechargeable Battery
Optional rechargeable battery and charger
ISO Certification
Manufactured in an ISO 9001:2015 certified operation
