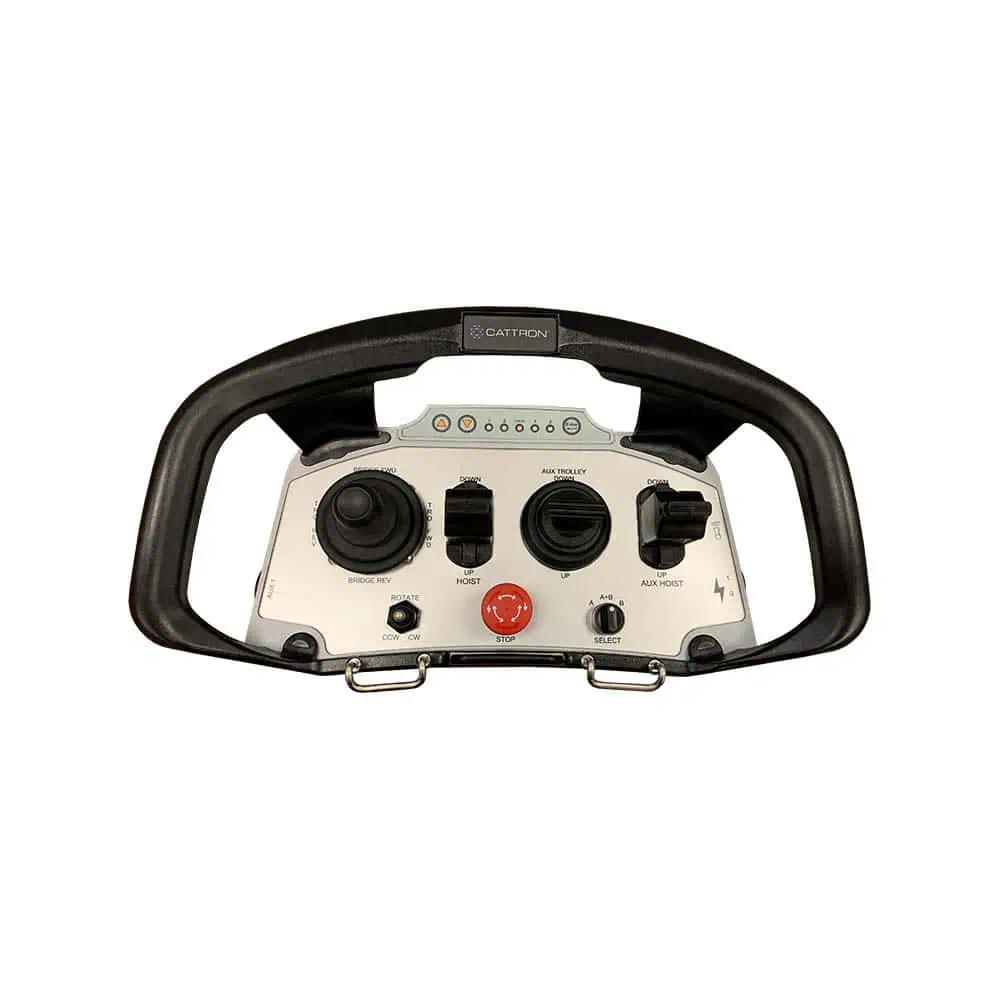

The CattronControl™ LRC-L1 is a full-sized, highly customizable operator control unit engineered for precise, safe and reliable industrial wireless control of cranes and machinery. Designed for demanding environments and complex applications, the LRC-L1 delivers flexible configuration, advanced safety architecture and global deployment capabilities in a rugged, ergonomic platform.
Built to support modern industrial operations, the LRC-L1 combines intuitive operator control with robust system performance. Its modular design allows customers to tailor the layout with a wide range of joysticks, paddles, switches and auxiliary controls, ensuring optimal usability for specific applications and operator preferences.
The LRC-L1 is designed with a high level of functional safety, featuring redundant hardware and software architecture to support critical operations. Upgrade Packages are available to ensure compliance with stringent international standards, such as the Cyber Resilience Act, helping organizations meet regulatory expectations for safe and secure operations.
Designed for seamless integration into existing systems, the LRC-L1 is compatible with the XBMCU, CBMCU, CT24, CCM12 and MMCU4 machine control units. It supports digital, bus, and analog drive systems, enabling straightforward deployment across a wide range of machine types.
- Customizable configuration with a wide range of control elements
- Up to three bi-directional joysticks, five full-size paddles, eight mini paddles and 32 auxiliary switches
- An additional 10 control elements, such as pushbuttons, toggles and rotary switches
- Supports digital, bus and analog drive systems
- Upgrade Packages are available to ensure compliance with the European Cyber Resilience Act requirements
- System configuration via a secure, wireless RFID Transkey
- Approvals and frequencies for worldwide deployment
- Works with XBMCU, CT24, CCM12, MMCU4 and CBMCU machine control units
-
Datasheets
-
User Manuals
-
Accessory Sheets
-
Compliance Docs
-
Product Videos
-
Related Pages
Protection
IP65 – Read about IP ratings
Housing
Impact and chemical/oil-resistant nylon
Compliance
- EN 13849-1 Category 3 PL-d
- EN 60204-1
- EN 60204-32
- CE
- RED
- CRA (upgrade packages available)
Drive Systems
Used for the control of digital or analog systems
Display
LED’s and optional graphic LCD for status and feedback
Frequency
Approvals available for worldwide deployment
ISO Certification
Manufactured in an ISO 9001:2015 certified operation
Tilt Detection
Configurable responses to various tilt angles
Display
LED and LCD displays for status and feedback
Talkback Feedback
Status display on LCD or LED and Multi-MCU talkback capability
Transmitter Power
10 mW typically, higher power options available
Battery
Rechargeable battery, NiMH, 4.8V/1600 mAH
SymmetryLock
Ensures synchronization of multi-crane operations
RF Range Control
RF Close Start and RF Range Limiting impose limits on the distance between the controller and machine at startup and during operation
Infrared Options
IR Close Start and IR Zoning make it possible to define precise zones in which the controller can be enabled
Double Jog Enable
Safety feature that prevents operation on the first deflection of joysticks and paddles
Push-to-Enable
Safety feature that requires an enable actuator to be pressed prior to activation of movements
Vest Harness
Has a variety of adjustments for ideal weight distribution and operator comfort, multiple sizes available
