The 10R and 17R are rugged and reliable industrial remote control receivers used for crane remote control and the wireless remote control of mobile equipment and machinery in manufacturing, transportation and warehousing.
The receivers have RF diversity for ultra-reliable communications and closed-box configuration, programming and analytics. Systems support data logging and diagnostics and a wide range of peripheral devices and functionality can be integrated into the system via the expansion port.
A safety motion relay can be added to give the system a PL-d safety rating. Upgrade Packages are available to ensure compliance with stringent international standards, such as the Cyber Resilience Act, helping organizations meet regulatory expectations for safe and secure operations.
CattronLink™ wireless programming tool streamlines the management of your remote control system for firmware updates, updating configuration parameters and monitoring device status.
- IP65 enclosure
- Hinged and lockable transparent lid
- Closed box configuration
- Diagnostics and data log download
- Safety motion relay option
- Upgrade Packages are available to ensure compliance with the European Cyber Resilience Act
- SD card for data logging
- CattronLink software management tool
- RF diversity for ultra-reliable communication
- ASO option for enhanced safety
- Works with Remtron™ 411, 611, PatriotPro and Safe-D-Stop™
-
Datasheets
-
Quick Start Guides
-
Solution Cards
-
Related Pages
Protection
IP65 – Read about IP ratings
Housing
Easy-to-mount enclosure with hinged and lockable transparent lid
Diagnostic Data Collection
Data logging and diagnostics memory are logged on the MCU and available
Power Options
A wide range of power options between 110v-220 VAC and 24 VDC enable Remtron to be deployed almost anywhere
Expansion Port
A wide range of peripheral devices and additional functionality can be easily integrated into the system via the expansion port
Plug-In Screw Terminals
Installation and maintenance are made easy with plug-in, screw terminals
Black Channel Communication
PL-d safety level based on black channel telegram for both control and feedback and a redundant dual-processor architecture
CattronLink Management Software
CattronLink enables continuous performance and simplifies configuration and feature upgrades via desktop or mobile app
Safety Relays
Safety relays for the main contactor are standard on Remtron MCUs. Safety relays can also be used for motion control giving the system a PL-d safety rating

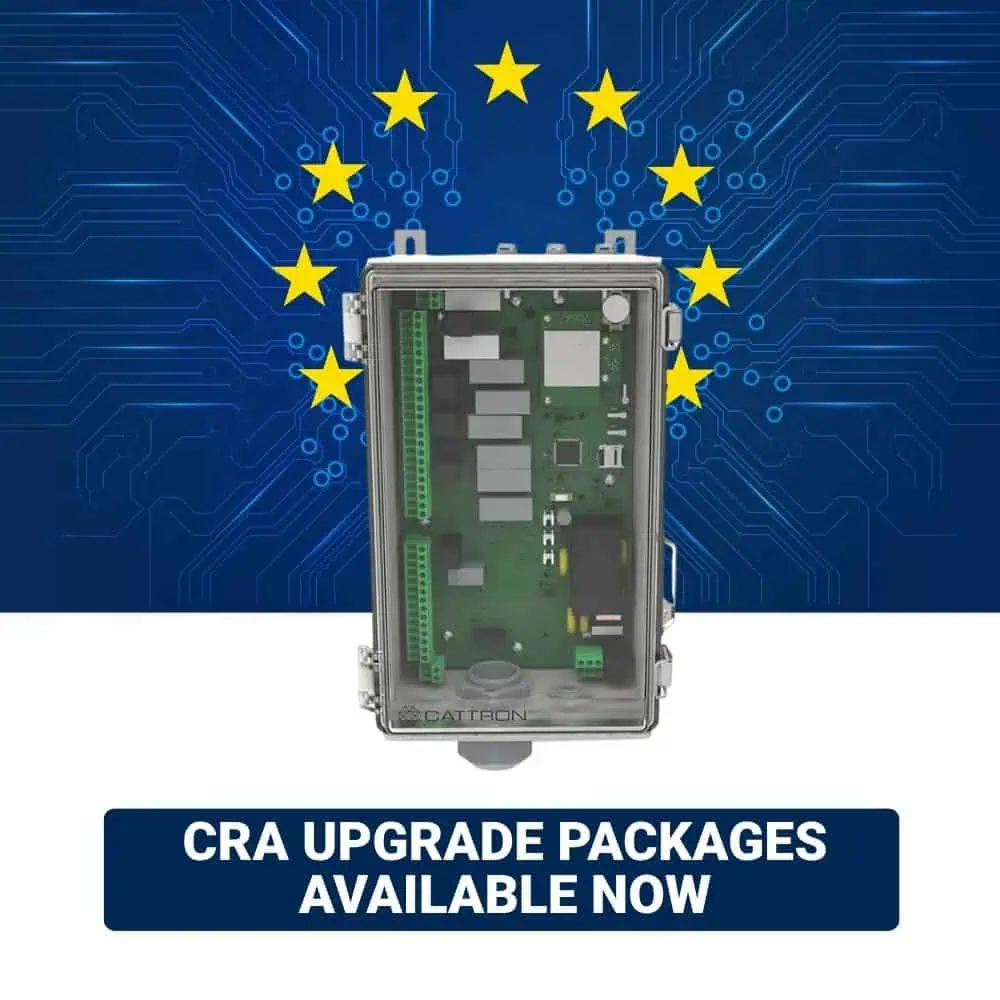

CRA Upgrade Package
Upgrade packages are available to ensure compliance with Cyber Resilience Act requirements for safe and secure operations
Global Frequencies
Global licensed and unlicensed frequencies offer support in the 915MHz, 868MHz, 433MHz and 2.4GHz (unlicensed) and 450-470MHz (licensed) spectrums
Cable Glands
Machine control units come with two cable glands already installed
Individual Fuses
Individual fuses are used for motion groups
Antenna Diversity
Antenna diversity is used for highly reliable and dependable communication of the system
Functionality
Two main contactor safety relays, Start/Alarm relay plus 10 or 17 relays can be used for motions and auxiliaries
Hoist Select
Includes indications shown on four status LEDs
