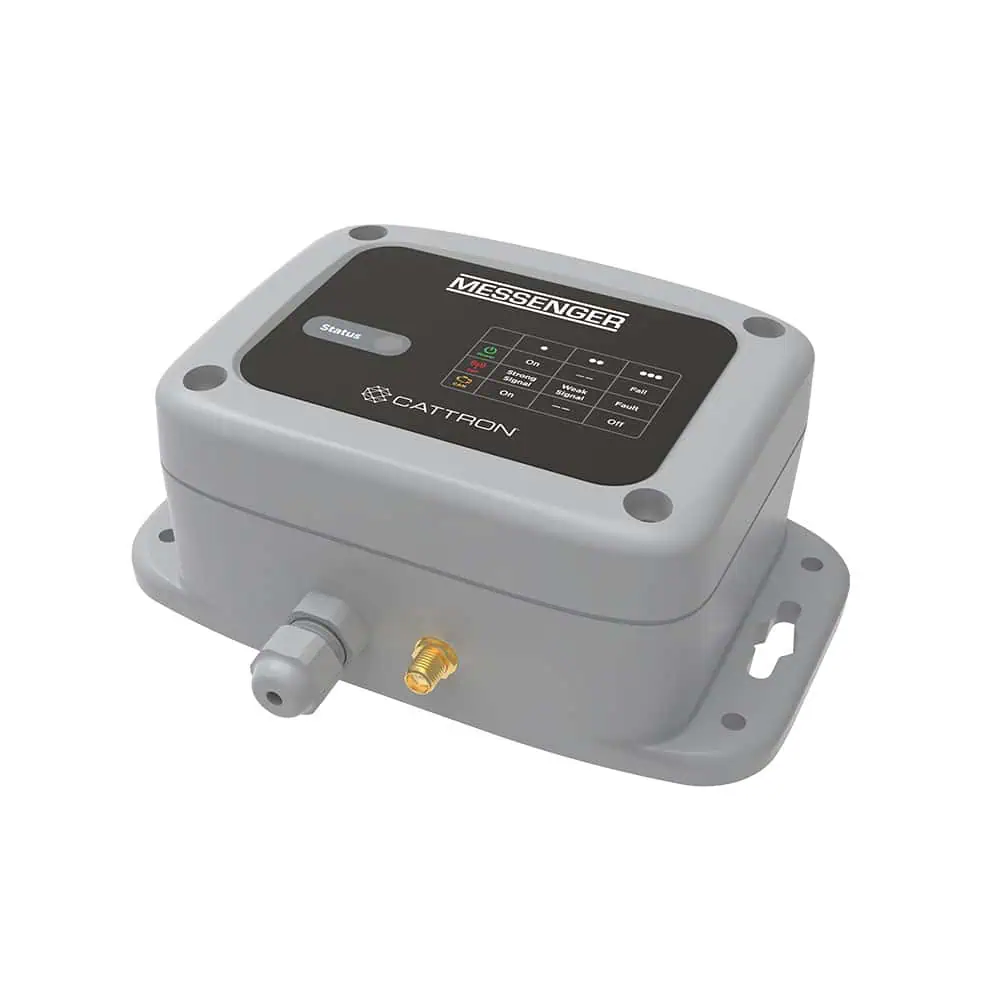

The Messenger Lite is a compact, remote monitoring device for diesel-driven engine equipment using a CANbus. The small form factor allows for easy, inconspicuous mounting and firmware updates can be easily made across the entire fleet. Remote monitoring of heavy equipment proactively identifies potential issues and improves overall performance and maintenance schedules.
- Powered by RemoteIQ™
- GPS location tracking
- Over-the-air firmware updates
- CANbus J1939 interface
- LTE-M communications
- IP65-rated enclosure
- One-year limited warranty
-
Datasheets
-
User Manuals
-
Quick Start Guides
-
Product Videos
Protection
IP65-rated
Housing
NEMA 4 enclosure
Interface
CANbus J1939
Communications
LTE-M modem with worldwide coverage
Firmware Updates
Firmware updates and parameter changes can be made across the entire fleet over-the-air
LED Indicators
Cell status, cell signal and CANbus connection visible via LED indicator lights
Battery
5v battery with 3.7V battery backup with one to seven-day lifespan
Remote Monitoring
Pre-activated with RemoteIQ (subscription required). Continuously monitor the following parameters, if available on the CANbus:
- Engine Speed (RPM)
- Fuel Level
- Coolant Temperature
- Engine Hours
- Engine Load Percentage
- Oil Pressure
- Battery Voltage
- Diagnostic Trouble Codes
- Cell Signal Strength
Warranty
One-year limited warranty
Antenna
External LTE antenna with 3m cable
