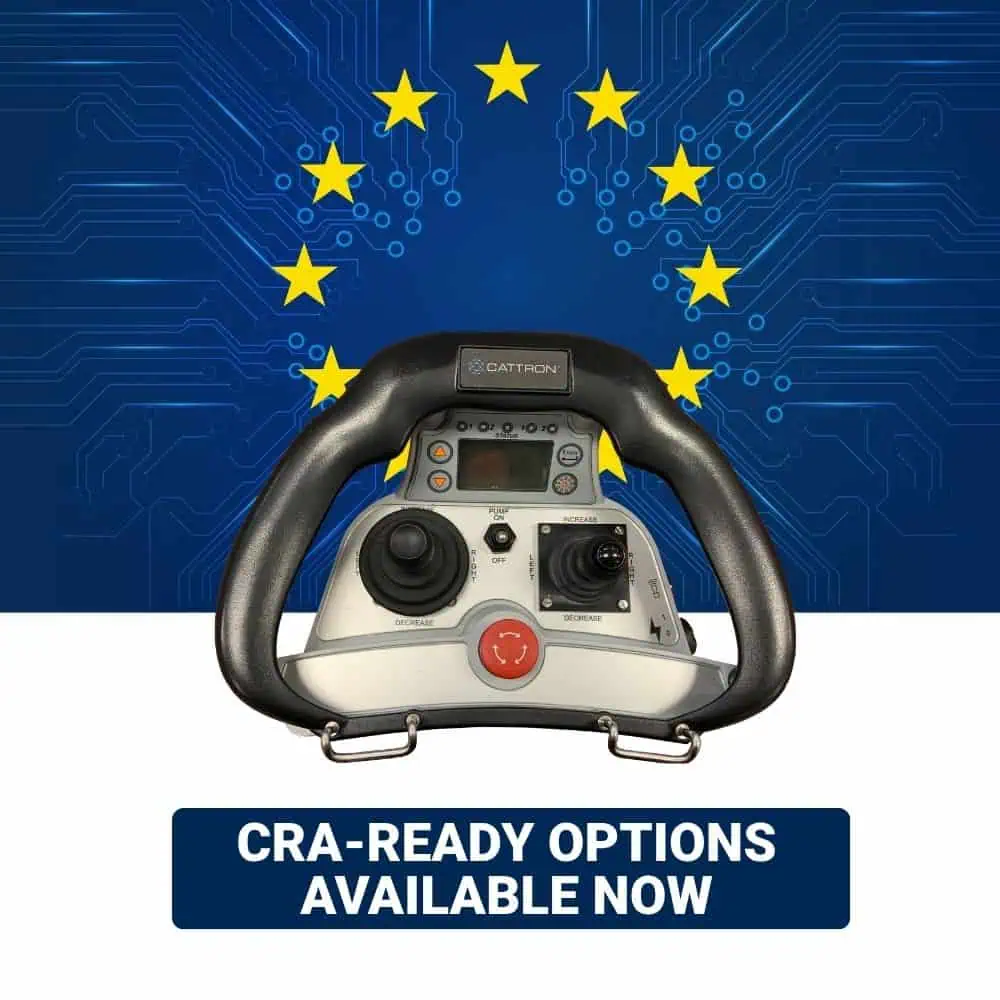

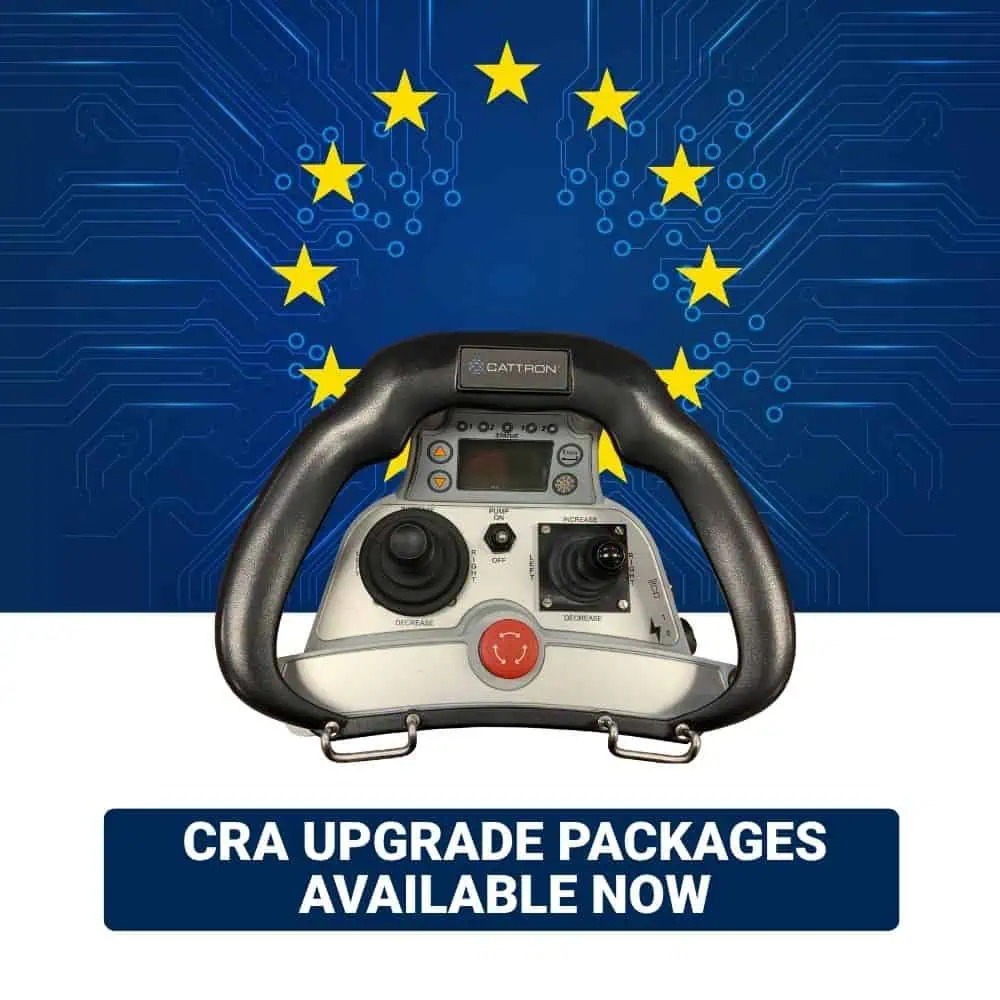

The CattronControl™ LRC-M1 is a mid-sized, bellybox-style radio remote control transmitter that offers a fully customizable configuration and a wide range of control options. Control elements include joysticks, paddles and auxiliary switches. The LCR-M1 can be customized for applications such as crane remote control and the wireless remote control of mobile equipment and machinery in transportation, distribution and warehousing.

  • Customizable configuration with a wide range of control elements
  • Up to two stepped or stepless joysticks, three full-size paddles and six mini paddles
  • Up to 22 auxiliary switches
  • Horn/Stop/On/Off
  • System configuration via a secure, wireless RFID Transkey
  • Works with CT24, CCM12, MMCU4 and CBMCU machine control units
  • Approvals and frequencies for worldwide deployment

Have Questions?

Contact Us

Housing

IP65 housing made of impact and chemical/oil resistant nylon housing

Multi-Access Control (MAC)

Available in tandem and multi-transmitter and/or receiver operation

Drive Systems

Used for the control of digital or analog systems

Display

LEDs and optional graphic LCD for status and feedback

Frequency

Approvals available for worldwide deployment

Compliance

EN 13849-1 Category 3 PL-d, EN 60204-1, EN 60204-32, CE Compliant, RED compliant

Warranty

Standard one-year product warranty

ISO Certification

Manufactured in an ISO 9001:2015 certified operation

Tilt Detection

Configurable responses to various tilt angles

Display

LEDs and optional graphic LCD for status and feedback

Talkback Feedback

Status display on LCD or LED and Multi-MCU talk back capability

Transmitter Power

10 mW is typical with higher power options available

Battery

Two rechargeable batteries, NiMH, 4.8V/1600 mAH

SymmetryLock

Ensures synchronization of multi-crane operations

RF Range Control

RF Close Start and RF Range Limiting impose limits on the distance between the controller and machine at startup and during operation

Infrared Options

IR Close Start and IR Zoning make it possible to define precise zones in which the controller can be enabled

Double Jog Enable

Safety feature that prevents operation on the first deflection of joysticks and paddles

Push-to-Enable

Safety feature that requires an enable actuator to be pressed prior to activation of movements

Vest Harness

Has a variety of adjustments for ideal weight distribution and operator comfort, multiple sizes available
