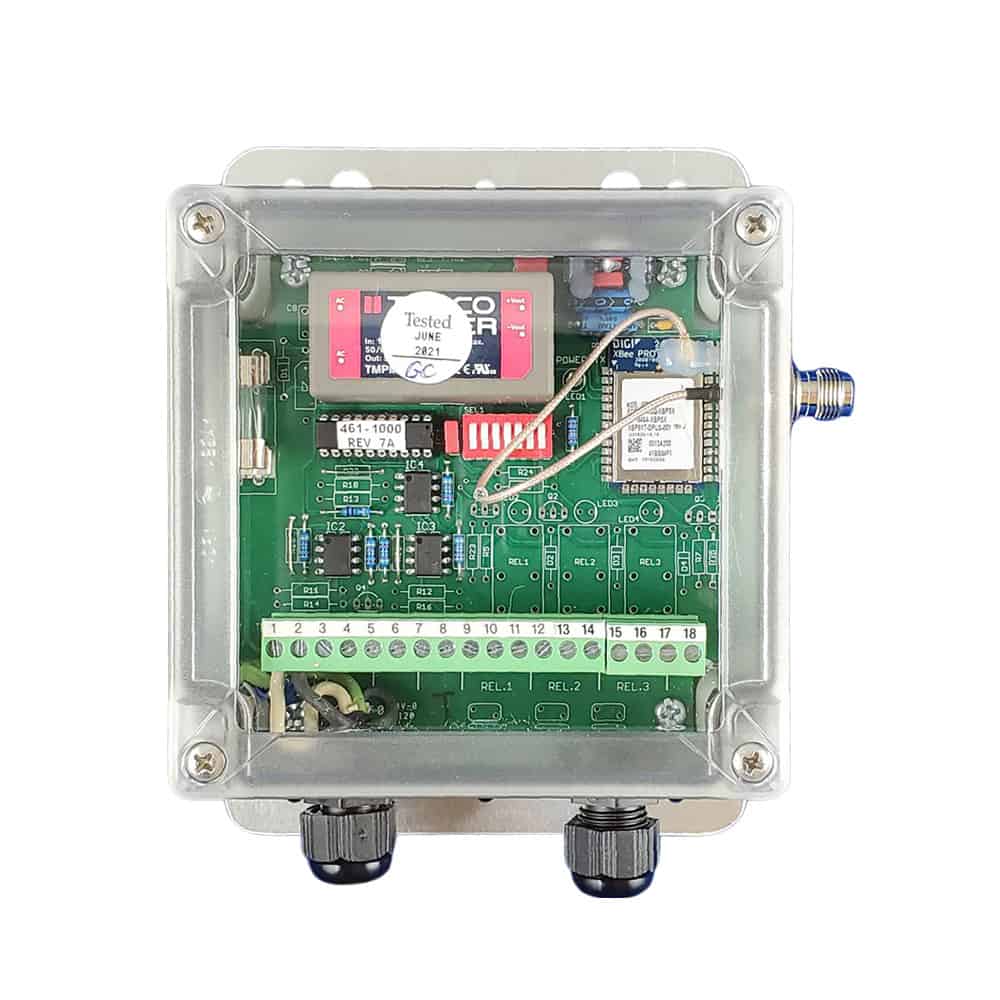

Air-Eagle XLT Plus Voltage Input Transmitters by BWI Eagle provide automatic control of remote equipment using voltage inputs from any external source. Multi-channel industrial remote control units can operate one or more receivers up to ten miles. A terminal strip that accepts one or more 5-24DC or 120AC voltage inputs from any external relay or switch is included.
Voltage input transmitters are used in applications requiring automatic activation with transmission triggered by voltage coming across the input. These stationary units are powered by 100-250VAC or 9-36VDC.
- Up to a ten-mile operating range
- Three, four or eight channels
- Operates on 900 MHz band
- Eight independent network frequencies
- AC or DC voltage inputs
- AC or DC-powered
- Can operate multiple receivers
- Proudly manufactured in the USA
- Works with Air-Eagle XLT Plus Receivers
-
Configuration Sheets
Frequency
900 MHz spread spectrum
Input Channels
Three, four or eight dry contact inputs
RF Networks
Eight independent network frequencies
Operating Range
- Standard operating range up to 5,000 feet
- Extended operating range up to ten miles with high-gain antennas and repeaters
RF Output Power
1 watt
Operating Temperature
-40° F to +185° F (-40° C to +85° C)
Housing & Protection
IP66-rated (NEMA 4) polycarbonate enclosure
Power
AC and DC-powered models
