The Messenger W is a basic SCADA monitoring system for small lift or pump stations, flow meters, level devices and power sources. The system monitors fixed assets in the field and transmits the data over a cellular network to RemoteIQ™ for alarm notifications, reports and more.
- For small lift or pump stations
- Powered by RemoteIQ™ Water
- Alarm notifications
- Track pump run-times and cycle
- Reports critical events
- Reduce site visits
- Lower operating costs
- One-year limited warranty
-
Datasheets
-
User Manuals
-
Quick Start Guides
-
Solution Cards
-
Support Videos
- How to Set up the 5dbi External Antenna Kit
- How to Manage Users in RemoteIQ Water
- How to Add a New Group or Customer in RemoteIQ Water
- How to Set Up Alarms and Receive Notifications in RemoteIQ Water
- How to Set GPS Coordinates using RemoteIQ Water
- How to Move Devices Between Groups Using RemoteIQ Water
-
Miscellaneous

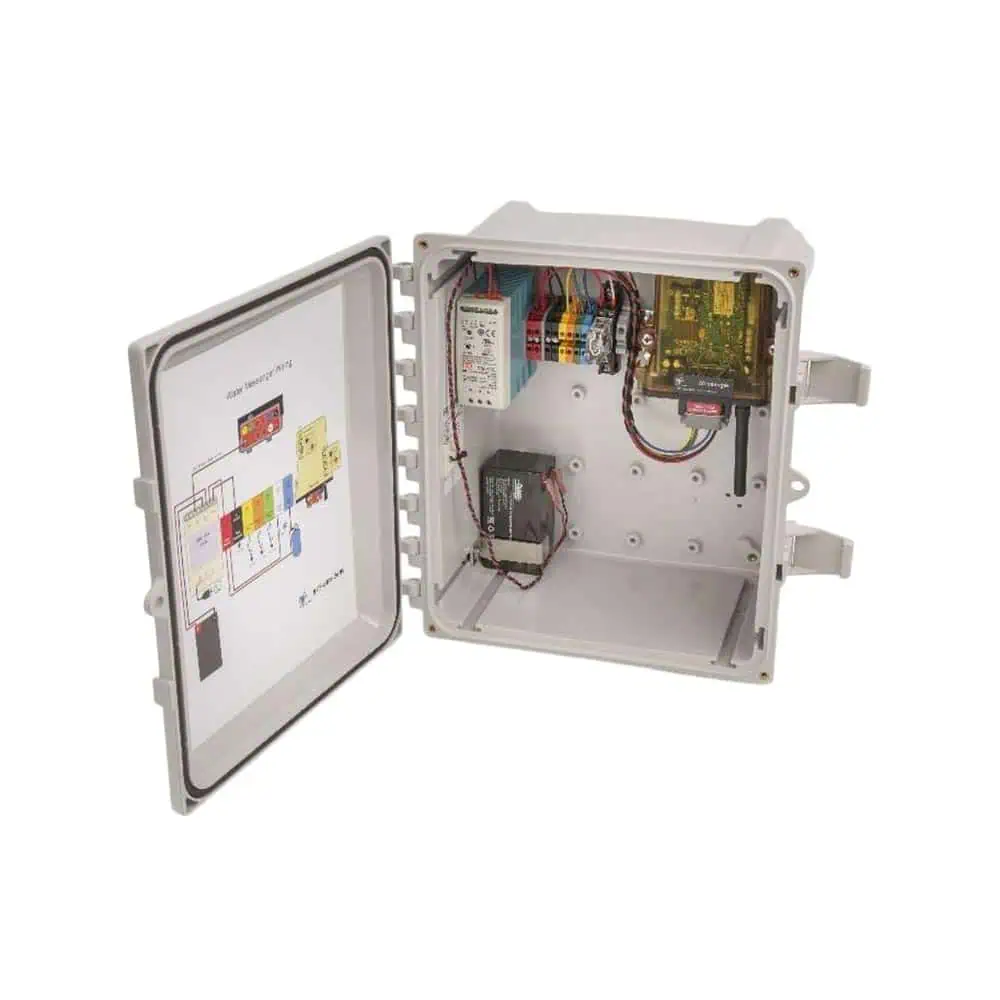

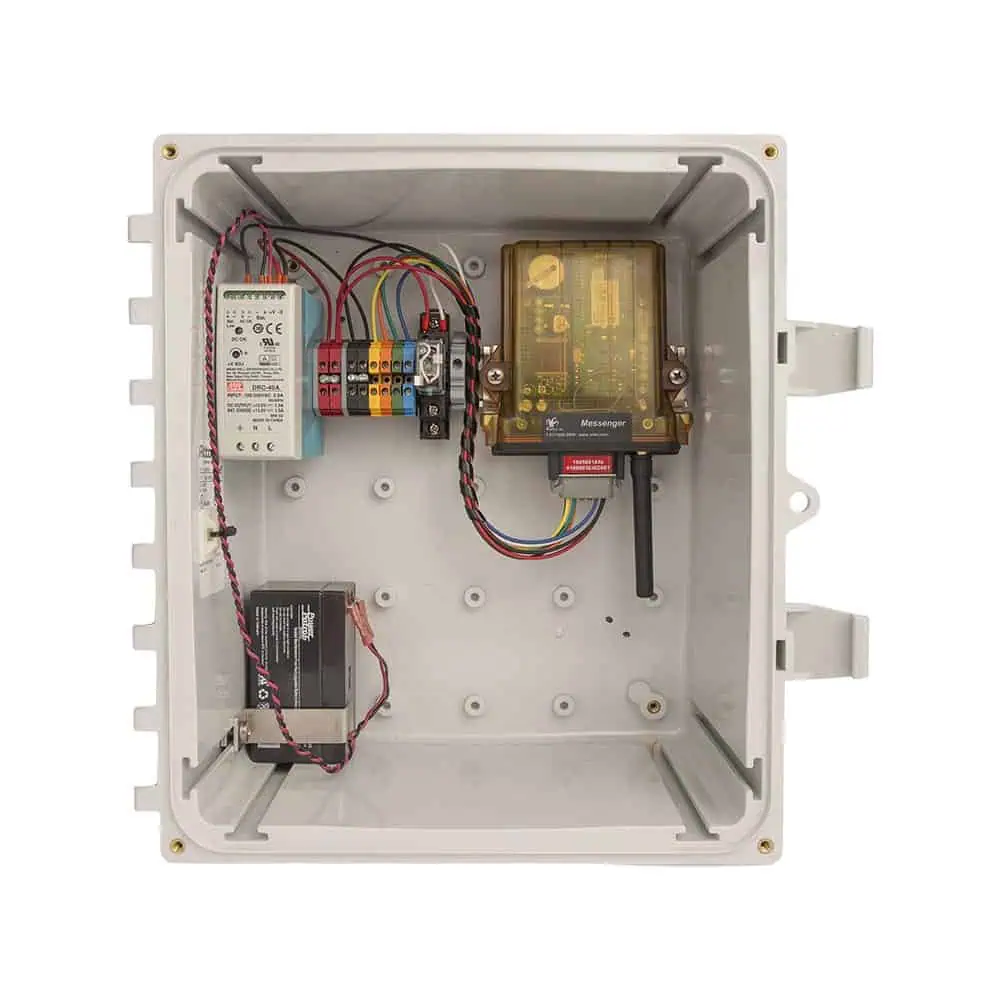

Hardware
Terminal blocks for easy wiring, power supply and back-up battery
Alarm Notifications
Alarm notifications are sent and acknowledged via voice, email and text messaging
Inputs / Outputs
Three digital or pulse inputs for level, pumps, run-times or cycles and computing flow rates. One analog input for flow, level, temperature, pH, UV or any other type of current input. One relay output to turn a device on/off or used to activate a local audio or visual device
Reporting
View historical data, alarm history and pump statistics to achieve optimal equipment performance for managing sites more efficiently
Monitoring
Cloud-based monitoring and notification through RemoteIQ via desktop computers or mobile devices
Modes
Sleep mode, monitoring mode and LTE transmit mode
Interface
Local interface via LEDs for power, alarms and modem communication
Warranty
One-year limited warranty
ISO Certification
Manufactured in an ISO 9001:2015 certified operation
Enclosure
DIN-rail mounted or NEMA 4X enclosure
Camera
Camera for incident-based events via on-demand snapshots that become historical data
Solar Kit
Fully power your Messenger unit without external power
Antenna Kits
5 dbi or 9 dbi high gain OMNI antenna kits
Cable
50 foot antenna cable
Multi-System Communication
Peer-to-peer available for tank-to-well monitoring and control (utilized with the Aquavx system)
