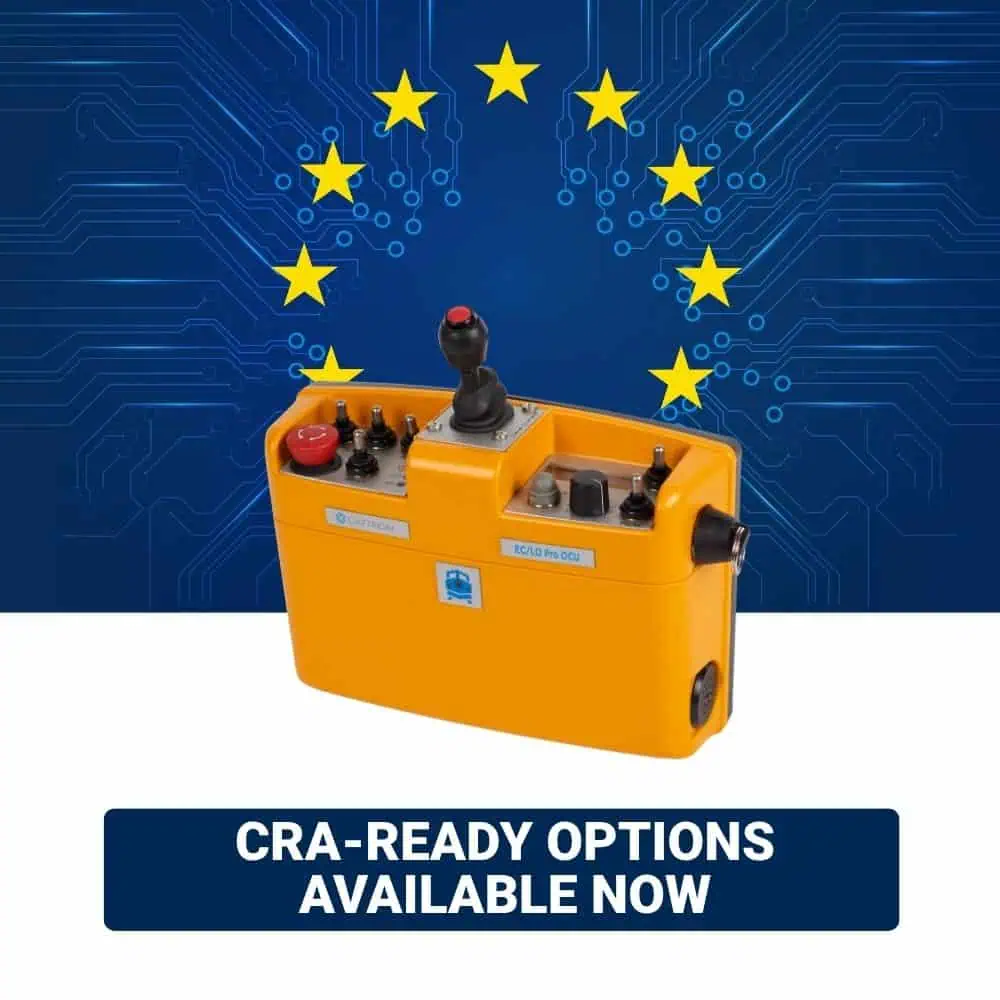

The EC/LO Pro™ OCU is an ergonomic, lightweight operator control unit used with the EC/LO Pro™ locomotive remote control system for European rail operators. EC/LO Pro™ is the first system in the industry to pass the TÜV Nord assessment and was certified for safety functions up to SIL 3. The OCU has five basic designs and is fully customizable.
- Third-party assessment by TÜV Nord for SIL 3 certification
- Basic configurations available or full customization
- Rapid configuration changes in the field
- Works with the EC/LO Pro™
-
Datasheets
-
Accessory Sheets
- EC/LO Pro 450-470 MHz Train Antenna Accessories - English
- EC/LO Pro 410-430 MHz train Antenna Accessories - English
- EC/LO Pro 410-470 MHz Train Antenna Accessories - English
- EC/LO Pro Battery Charger Accessories - English
- EC/LO Pro Battery Charger Accessories - German
- EC/LO Pro OCU Harness Accessories - English
- EC/LO Pro 450-470 MHz Train Antenna Accessories - German
- EC/LO Pro 410-430 MHz Train Antenna Accessories - German
- EC/LO Pro OCU Harness Accessories - German
-
Compliance Docs
Housing
IP65 housing made of impact-resistant polycarbonate resin
MCU Compatibility
Used with the EC/LO Pro MCU and TH-EC/LO MCU
Safety Compliance
EN 50126, EN 50128 SIL3, EN 50129 SIL3, EN 50239, EN 50155
System Indications
Audible and visual indications of low battery status and/or other status messages
Data Transmission Compliance
EN 50159-2, EN 60870-5-1,Integrity Class 13
Antenna
Integrated internal antenna with external antenna as an option
Warranty
Standard one-year product warranty
ISO Certification
Manufactured in an ISO 9001:2015 certified operation
Pitch and Catch
Enables a two-person team to direct movement of the locomotive including braking, horn and tilt protection
Talkback
Transmission of information from the locomotive to the OCU via configurable display
LED Flashlights
Two LED blocks, each with five super-bright white LEDs, can be mounted on the front of the portable transmitter. These blocks are controlled alternately in a fast rhythm and thus generate a warning signal, improving the safety of operators.
TransLoop
RFID-based technology that allows control commands to be coupled into the portable transmitter without contact and without mechanical connectors.
Battery Charger
Passes fire protection standards thus enabling it to be conveniently mounted on the locomotive
