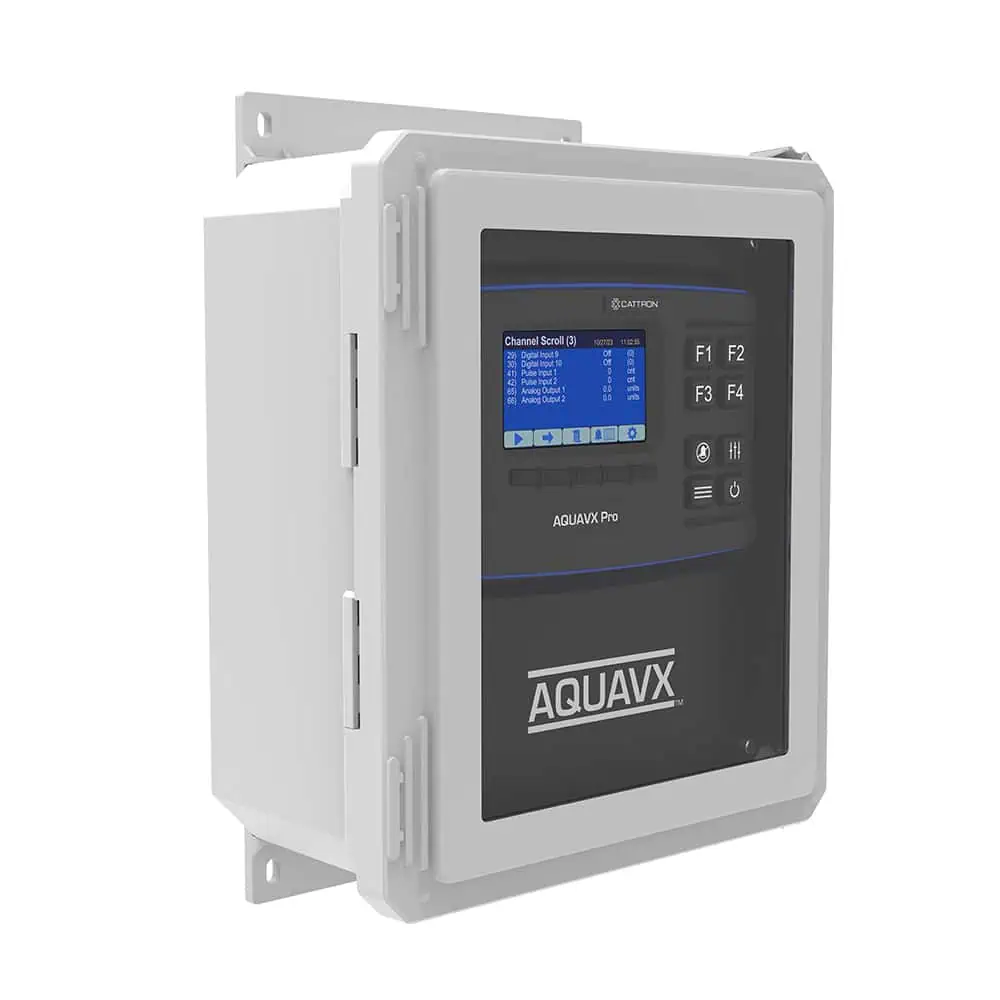

The Aquavx™ Pro is a premium remote monitoring device powered by the RemoteIQ™ Water cloud platform for real-time monitoring and control.
In addition to a sunlight-viewable color display, the system has ten digital inputs, two pulse inputs, two analog inputs and three outputs. It also includes RS-232 and RS-485 with 16 built-in Modbus Master Registers.
Alarm notifications are sent via voice, text or email, alerting operators when there is a power failure, limits are exceeded, or communications are lost. Intuitive graphics and dashboards in RemoteIQ™ Water provide real-time insights into the performance of remote sites.
With the Aquavx Pro, there are no networks, engineering or third-party licenses to maintain. The system has an 18-hour backup battery with the option to increase to 72 hours. Loss of AC detection triggers a switch to the battery with additional outputs available for the sensor loop supply.
The Aquavx Pro is FirstNet compatible, ensuring priority access to network communication, with the optional modem.
- Powered by RemoteIQ™ Water
- Ten digital inputs, two pulse inputs, two analog inputs, two digital outputs and one analog output
- RS-232 and RS-485 with 16 built-in Modbus Master Registers
- LTE-M cellular or satellite communications
- Comprehensive security and compliance
- 18-72 hour battery backup
- FirstNet compatible with optional modem
- System data, alarms, rosters, history and audit trails
- Peer-to-peer communication with other Aquavx Pro and Aquavx ProPlus devices
- See also Aquavx ProPlus
-
Datasheets
-
Quick Start Guides
-
Solution Cards
-
Product Videos
-
Support Videos
Alarm Notifications
Alarm notifications via email, text and voice calls can be programmed for site and user parameters.
Local User Interface

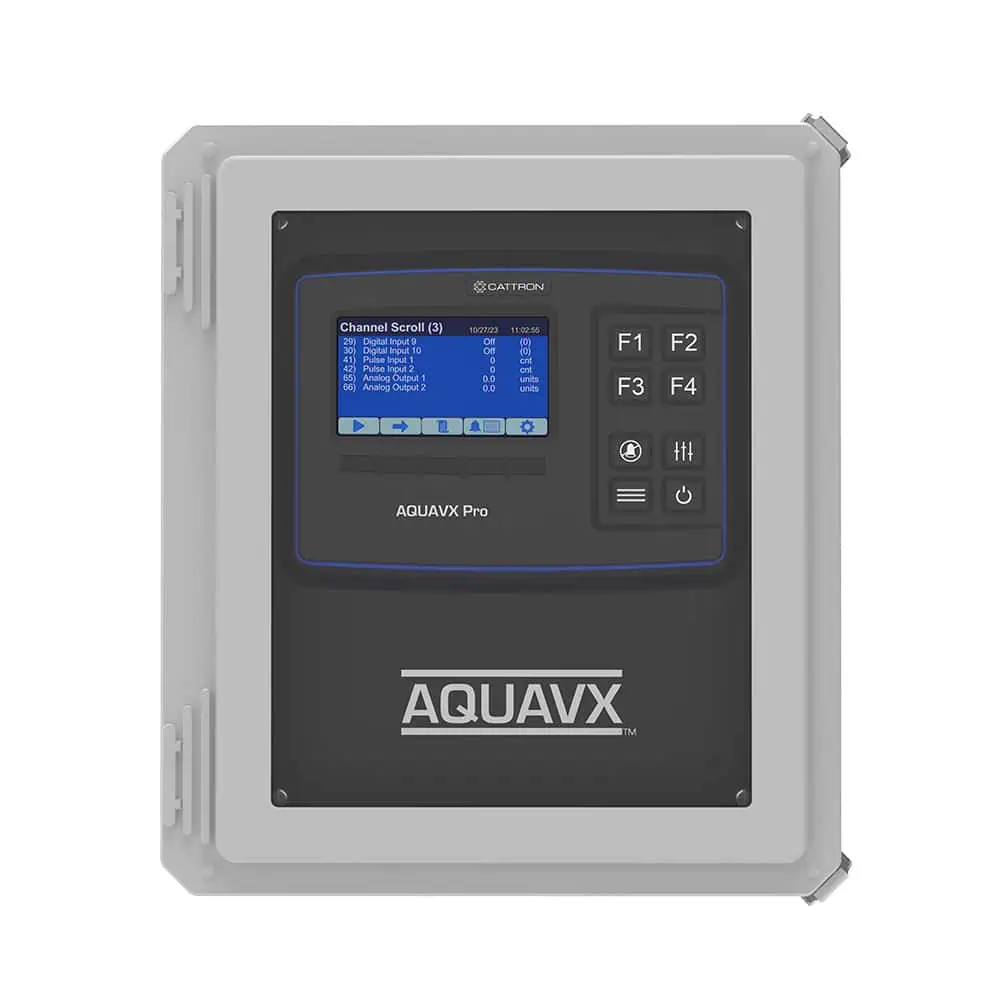

- Advanced sunlight-viewable, color display
- 13 buttons for navigation, configuration and viewing
- View run-times, cycles, levels, flow and totalized flow
- Control pumps, valves and other field devices
Inputs / Outputs
- Standard I/O includes ten digital inputs, two pulse inputs, two analog inputs and three outputs
- RS-232 and RS-485 with 16 built-in Modbus Master Registers
Cloud Platform
Use RemoteIQ Water to monitor performance, receive alarms, and view and control remote assets such as tank levels, line pressure, flow rates and water quality using mobile devices, tablets or laptops.
Reporting
- Scheduled or on-demand reports for run-times, cycles, level, inflow and outflow
- Rain events include a complete audit trail of alarm notifications
Security & Compliance
Learn about our approach to security and compliance, which includes Transport Layer Security (TLS), Security Sockets Layer (SSL), Multi-Factor Authentication (MFA) and SOC-2 compliance.
Peer-to-Peer Communications
Peer-to-peer communications between Aquavx Pro and Aquavx ProPlus systems enable system-wide controls
Communications
- LTE-M cellular
- FirstNet compatible modem (optional)
- Satellite modem (optional)
- Ethernet for Modbus TCP interface
- USB for configuration and firmware updates
Battery
- 12 VDC output
- Loss of AC power triggers an automatic switchover to the battery
- DC supply voltage available for sensor loop supply
- 18-hour battery backup with the option to expand up to 72 hours
Satellite Communication
Iridium satellite modem
FirstNet Compatible
FirstNet compatible modem is available to ensure priority access to network communication
Accessories
- Solar kit, including accessories
- High gain OMNI antennas
- 50 foot antenna cable
