DynaGen™ 200
The DynaGen™ 200 compact controller is ideal for the manual or autostart operations of electronically or mechanically governed engines on small portable equipment and machinery. It offers six inputs and three outputs and supports CANbus J1939 and Modbus RS-485 messages. The rugged IP67-rated housing can withstand the harsh environments mobile and rental equipment endure and is Tier 4F and Euro Stage V compliant. A high-resolution color display provides an intuitive, user-friendly interface for configurations and utilizes a multi-level PIN-based menu for security. Private label branding is available for OEMs.
The DynaGen 200 controller is equipped with a built-in QR-Assist diagnostic tool that generates QR codes that any smartphone or tablet can quickly scan to troubleshoot and expedite resolution. Cloud-based monitoring is available with a Messenger Lite telemetry device and the RemoteIQ cloud platform.
- Six inputs and three outputs
- For electronically and mechanically governed engines
- Advanced throttling capabilities
- QR-Assist service and maintenance diagnostic tool
- Tier 4F and Euro Stage V compliant
- 2.8” high-resolution color display
- Private label option
-
Datasheets
-
User Manuals
-
Wiring Schematics
-
Flyers
-
Solution Cards
-
Software
-
Product Videos
-
Miscellaneous
User Display
Intuitive, user-friendly menus are accessible via sunlight-viewable high-resolution 2.8” QVGA color display
Protection
IP67-rated
Advanced Throttling Options
Optimize engine performance with flexible throttling modes designed to match the needs of your application. Learn about the CANplus advanced throttling capabilities that provide greater control over engine-driven equipment.
Inputs / Outputs
- Three analog inputs: one high and one low impedance; one configurable (4-20mA, 0-5V, variable resistance 0-240Ω, variable resistance, 0-5000Ω, switch to ground)
- Three digital inputs: VBAT, GND, Open and Closed (Tri-stating)
- Three switched outputs: 1A high side switches, logic level driven capable
Configuration
Host USB port for configuration and updates using menus or through a Windows-based configuration program
Interface
- CANbus J1939
- Modbus RS-485
Autothrottle Profile
Configurable seven-stage autothrottle profile
QR-Assist Diagnostics
Instantly access fault diagnostics and troubleshooting information by scanning a QR code displayed on the control panel. Learn how QR-Assist helps operators identify issues faster, reduce downtime and simplify equipment maintenance.
Remote Monitoring
Expand remote monitoring capabilities with Messenger Lite and RemoteIQ
RelayPak
RP100-VM: RelayPak with 12 VDC relays
Relays
RLY0053: 12 VDC, 40A, UL relay
RLY0054: 24 VDC, 40A, UL relay
Cable
ACC0084: USB cable, 6.5′ A male – B male
Pressure Sender
ACC0108: 100 PSI, 1/8″ or 3/8″
Temperature Senders
ACC0027: 280 PSI, 1/8″ – 27 NPTF
ACC0098: 280 PSI, 3/8″ – 18 NPTF
ACC0099: 280 PSI, 1/2″ – 14 NPTF
Engine Adapter Harness
2HAR-9427-A200-C: Engine adapter

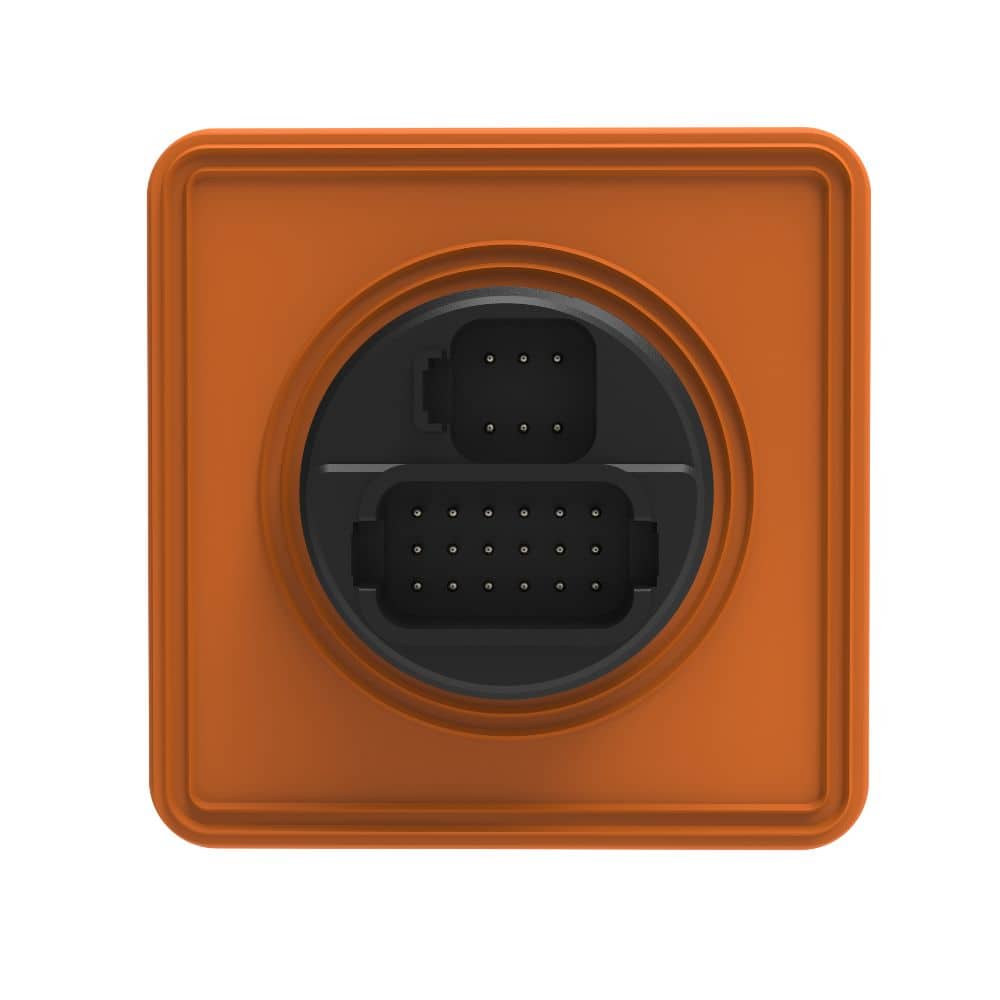

6-Pin Harness
2HAR-9427-A001-A: 6-pin flyout harness
18-Pin Harness
2HAR-9427-A100-B: 18-pin flyout harness
