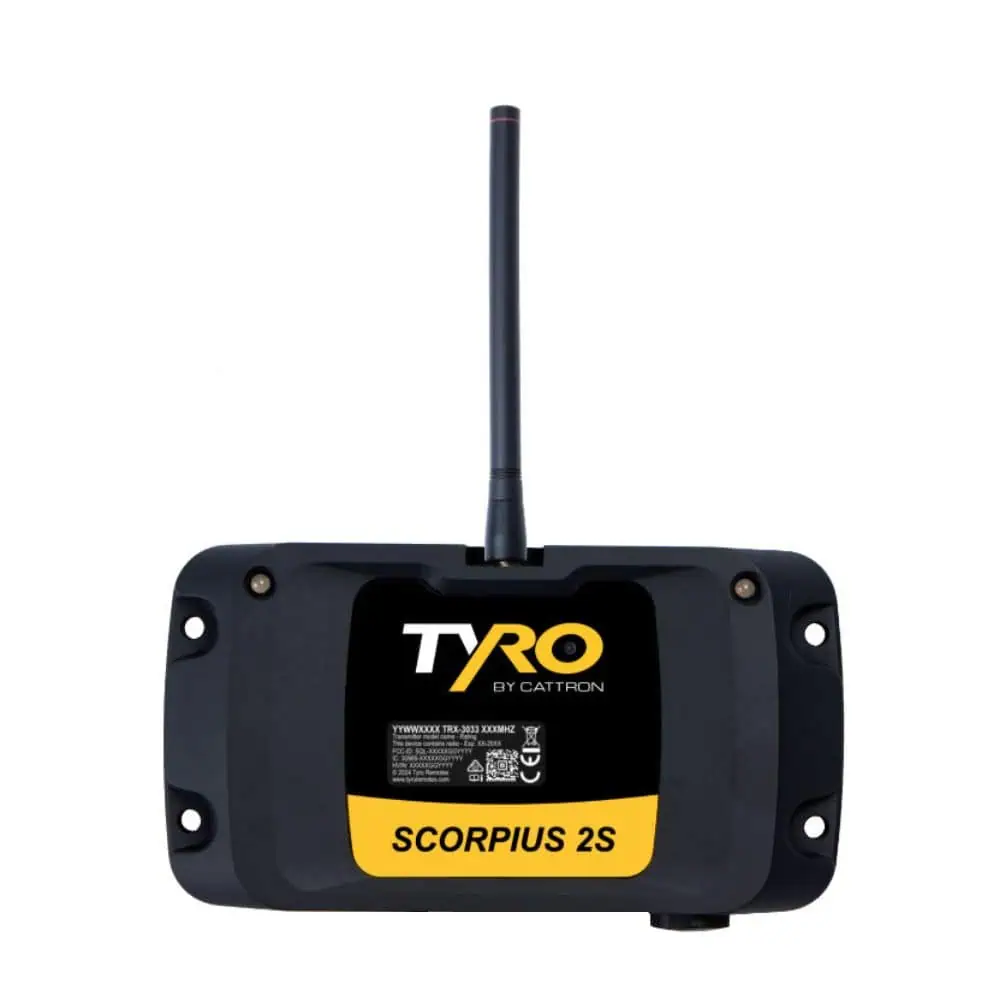

The Tyro™ Scorpius 2S is engineered to perform seamlessly in challenging conditions. The industrial remote control receiver has either an IP65 or IP68-rated housing built to withstand the harshest weather conditions, shock and impact, safeguarding your operations from unexpected mishaps. With a compact and lightweight design, the Scorpius 2S is an ideal choice for applications where space could be a factor.
The Scorpius 2S is highly configurable for your specific requirements and is PL-d ISO 13849-1 certified. Offering duplex communication, this receiver ensures uninterrupted connectivity. This plug-and-play solution drives operational efficiency with hassle-free installation and preassembled cables.
- IP65 or IP68-rated housing
- Compact and lightweight design
- Duplex communication via Cat1 radio
- Pre-wired for plug-and-play installation
- ISO 13849-1 PL-d certified
- Global frequencies: 434 MHz / 915MHz
- Optional CANopen, J1939 or RS-232 interface
- Compatible with the Pyxis 2S, Cetus 2S and Fornax 2S transmitters
- Download Tyro user manuals
-
Datasheets
-
Solution Cards
I/O Control
- Four digital inputs (optional)
- Eight, 10 or 14 digital outputs
- Two analog outputs (optional)
- Two safety outputs
Communication Mode
Duplex
Protection & Housing
- IP65-rated, lightweight, openable ABS housing
- IP68-rated solid cast housing for water, shock and impact resistance
- Read about IP ratings
Frequency
Global coverage with worldwide spectrums: 434 MHz and 915 MHz
Safety & Compliance
- ISO 13849-1 PL-d certified
- CE
- RED
- EMC
- LVD
- ECE-R10
Power
8 – 36 VDC
One-to-Many / Many-to-One System
Ability to control one receiver with multiple transmitters or multiple receivers with a single remote control.
- 434 MHz and 915 MHz: maximum ten receivers
Antenna
SMA antenna
Tilt Sensor
Additional safety sensor which measures the tilt angle of equipment
Interface
- CANopen
- J1939
- RS-232
I/O Control
Additional outputs are possible
Accessories
- Supply available for high currents
- Mounting magnets
- Antenna extension cable
