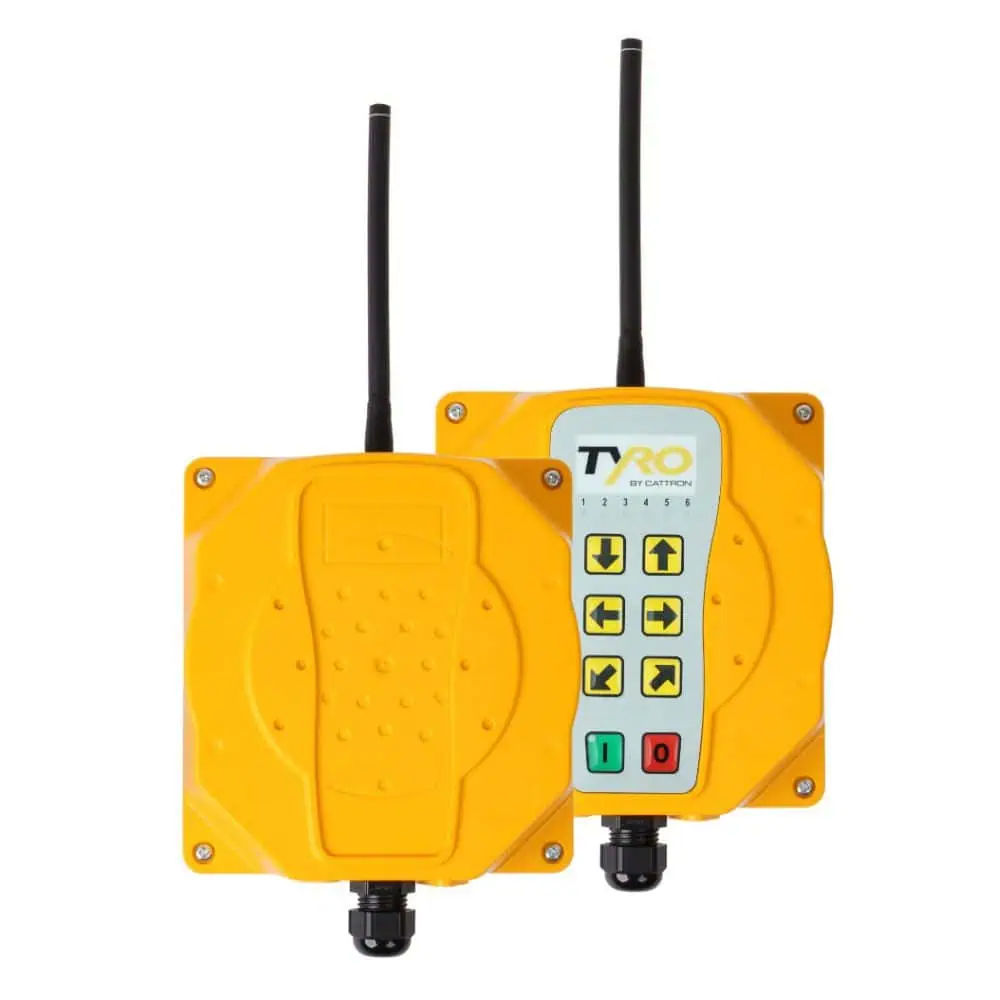

The Tyro Auriga 2S is a reliable and flexible all-purpose industrial remote control receiver. With ten digital outputs and modular PLC options, this receiver is perfect for a wide range of applications. Experience the convenience of multifunctional capabilities, including digital and analog inputs and outputs and potential free relays.
Available across many industries, from agriculture to construction, marine and mobile equipment, the Auriga 2S is the go-to receiver for complex tasks. It is certified for use on public roads, making it popular among trailer builders for aligning axles, controlling winches and other in-vehicle applications.
For additional convenience, you can equip the Auriga receiver with an optional keypad and/or an LCD-backlit display. This allows you to control your application or check values in close range, even without the handheld remote unit.
- IP65-rated ABS housing
- Digital and analog inputs and outputs
- Potential free relays
- Configuration according to client requirements
- Programmable up to ten transmitters
- Frequency hopping
- Global frequencies: 434 MHz /915 MHz /2.4 GHz
- Available with optional keypad and/or display
- Compatible with Pyxis 2S and Cetus 2S transmitters
- Download Tyro user manuals
-
Datasheets
-
Solution Cards
I/O Control
- Ten digital output
- Eight digital inputs
- One analog output (4 optional)
- Four analog inputs
Frequency
- Global coverage with worldwide spectrums: 434 MHz, 915 MHz and 2.4 GHz
- Frequency hopping
Communication Mode
Duplex
Protection
IP65-rated – Read about IP ratings
Housing
ABS housing
Transceiver
Expands the receiver with an optional LCD and/or keypad with two to ten buttons to control your application and visualize machine values bidirectionally
Safety & Compliance
- CE
- FCC
- ISED
- RCM
- RED
- ECE-R10
Power
8 – 36 VDC
One-to-Many / Many-to-One System
Ability to control one receiver with multiple transmitters or multiple receivers with a single remote control.
- 434 MHz and 915 MHz: maximum ten transmitters
- 2.4 GHz: maximum eight transmitters
Antenna
SMA antenna
Display
Expands the receiver with an optional LCD to visualize machine or application values bidirectionally
Keypad
Add a keypad (two to ten buttons) and control your application directly on the receiver
Customization
- Personalize the OCU with your logo, showcasing your brand or unique application identity
- Customizable icons
Additional I/O
Additional outputs for the Quad DAC model
Accessories
- Mounting magnet
- DIN-rail holder
- Antenna extension cable
