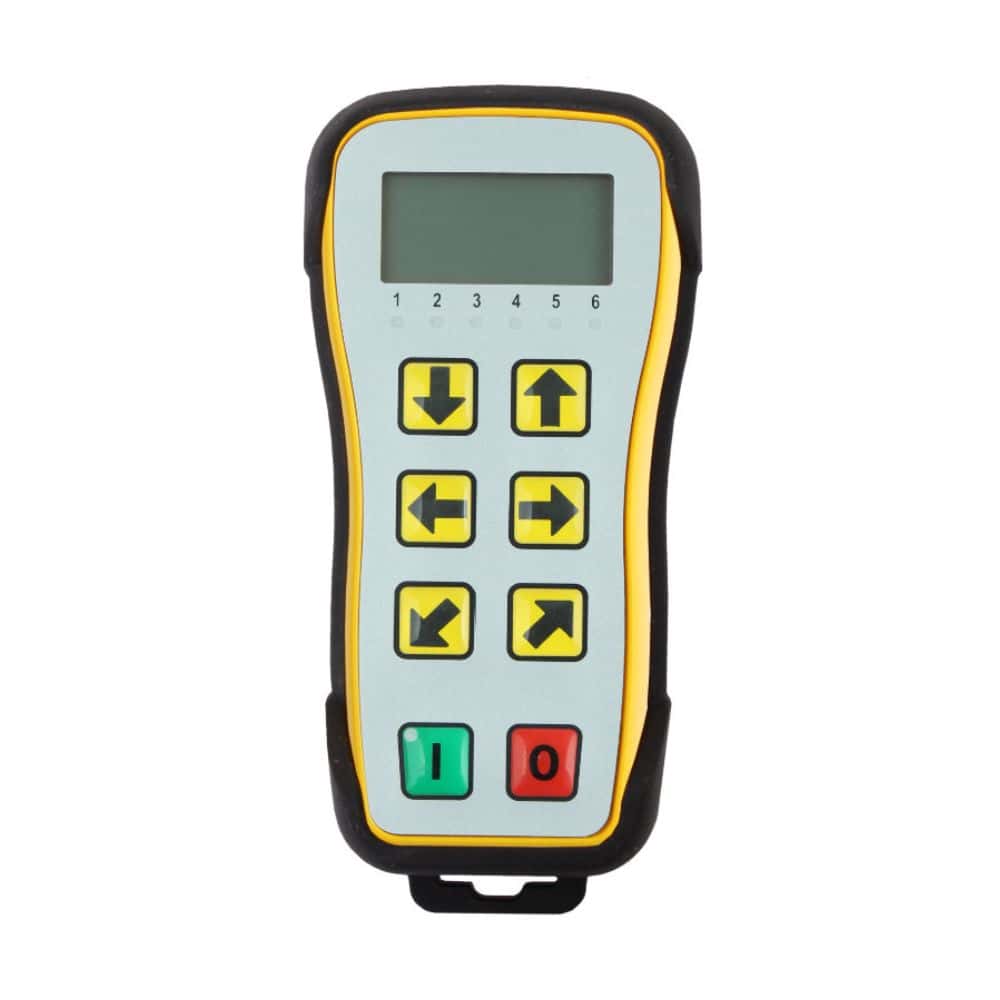

The Tyro™ Pyxis 2S is an industrial wireless remote control system built to boost operational efficiency. It is designed to withstand demanding applications in agriculture, industrial automation, transport and warehousing.
The Pyxis 2S transmitter can control up to ten functions tailored to your specifications. Select an optional safety package to provide enhanced ISO 13849-1 PL-d certification. A wide range of customizable options for button layout and icons.
Duplex communication mode with real-time feedback ensures a secure and dependable radio remote control solution for your application.
- IP65-rated
- Configurable with up to 10 buttons and multiple menus
- Available in three models (regular, sleeve, safe)
- Customize with your brand, icons and logo
- Real-time feedback through LED lights and/or an LCD screen (optional)
- ISO 13849-1 PL-d certification (with optional safety package)
- Frequency hopping
- Global frequencies: 434 MHz / 915MHz / 2.4GHz
- Compatible with the Scorpius 2S, Aquarius 2S and Auriga 2S receivers
- Download Tyro user manuals
-
Datasheets
-
Solution Cards
Button Layout
Two to ten buttons with an optional e-stop button; customizable icons
Protection
IP65-rated – Read about IP ratings
Housing Material
Industrial-grade ABS housing material
Frequency
- Global coverage with worldwide spectrums: 434 MHz, 915 MHz and 2.4 GHz
- Frequency hopping
Communication Mode
Duplex
Battery Type
- 3.6VDC 1500mAh Ni-MH rechargeable battery pack
- Five-hour charging time
Battery Life
- 40 hours with typical use
- 10 hours with keyboard and LCD backlighting activated
Safety & Compliance
- ISO 13849-1 PL-d certification (with optional safety package)
- CE
- FCC
- ISED
- RCM
- RED
- ECE-R10
One-to-Many / Many-to-One System
Ability to control one receiver with multiple transmitters or multiple receivers with a single remote control.
- 434 MHz and 915 MHz: maximum ten receivers
- 2.4 GHz: maximum eight receivers
Antenna
- Integrated antenna
- Optional external antenna (not compatible with stop button)
Function Models
Regular, sleeve and safe models are available
Feedback
Real-time feedback via LED lights and/or an LCD screen
Safety Package
The safety package provides enhanced ISO 13849-1 PL-d certification that includes an emergency stop button and sleeve
Customization
- Personalize the OCU with your logo, showcasing your brand or unique application identity
- Customizable icons
Accessories
- Charger wall mount
- 12/24V charger kit
- Wall mount
- Sleeve
- Lanyard
