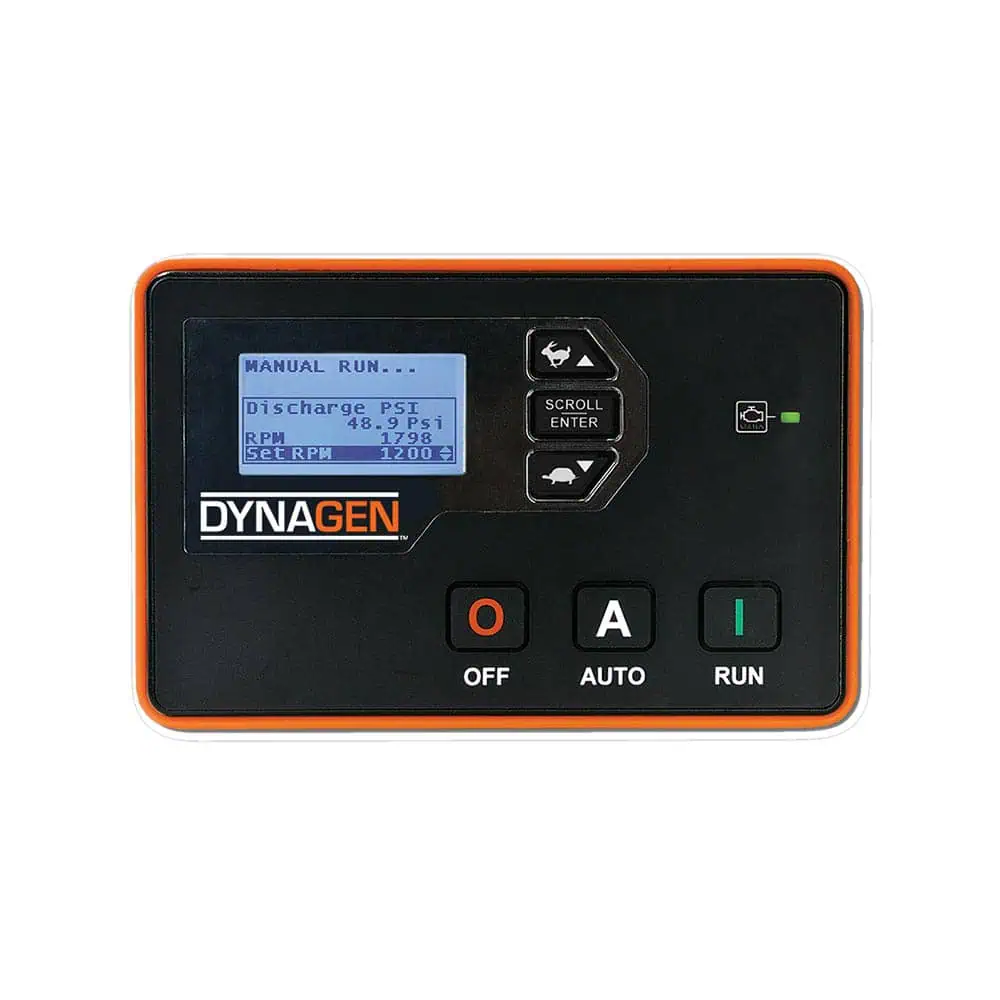

The DynaGen™ TE350 is an engine controller that supports variable speed applications and closed-loop control for mechanically or electronically governed engines. It offers autostart or manual operations, CANbus communications, nine inputs and six outputs. Private label branding is available for OEMs.
- Supports all major diesel and spark engines
- Tier 4F and Euro Stage V compliant
- Variable speed applications and closed-loop control
- Supported by RapidCore™ configurator software
- Private label option
-
User Manuals
-
Wiring Schematics
-
Flyers
-
Accessory Sheets
-
Solution Cards
-
Compliance Docs
-
Firmware
-
Support Videos
-
Related Pages
Housing
- Conformally coated for protection against moisture and contaminants.
- Front panel gasket for panel water ingress protection
Display
- Oil pressure
- Engine temperature
- Fuel and oil levels
- Hour meter
- RPM
- Battery voltage
- Real time clock with date/time
- J1939 DTC codes
- DPF and DEF status icons
- J1939 percent load and percent torque
- Custom screens for pumping or compressor applications
RapidCore Software
The easy-to-use software interface allows you to set up your controller, adjust configurations, customize CANbus settings and download diagnostic details. Download the latest software version.
Autostart
Autostart trigger on sensor value (pressure, temperature, level voltage)
Functions
- Built-in weekly scheduler
- Maintenance counter
- Preheat and many configurable timers
- Stall detection
- Retry on false start
- Custom warnings and failures
- Configurable Diagnostic Trouble Code (DTC)
Speed Control
- Front panel RPM adjustment buttons, full electronic variable speed control over J1939
- Configurable remote bump speed control
- Configurable ramping control with 3 set points: idle, intermediate and goal RPM
- Adjustable min/max RPM limits
- Configurable set point RPM output feature
Closed Loop Control
Closed loop control using feedback from sensors such as level and pressure
Inputs / Outputs
Four analog inputs, 5 digital inputs and six switched outputs
Communication
CANbus J1939
ISO Certification
Manufactured in an ISO 9001:2015 certified operation
RelayPak
Snap on RelayPak eliminates the need to mount and wire external slave relays for fuel crank and up to two other loads
Monitoring
RemoteIQ remote monitoring and control available with cellular modem
Mimic Panel
TR100E is available for TE350 and TE410 controllers and mimics what is displayed on the controller.
