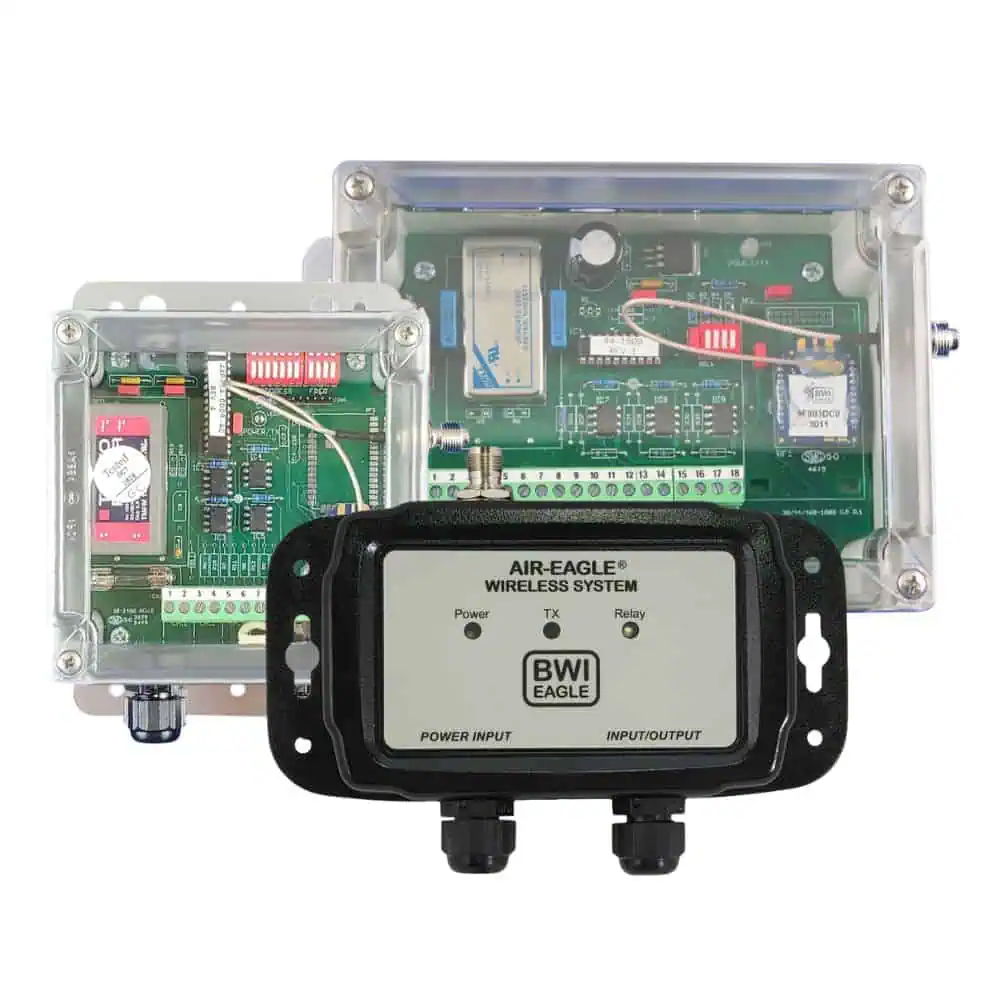

Air-Eagle SR Plus Contact Input Transmitters by BWI Eagle remotely control equipment using an external relay or switch inputs. Single or multi-channel industrial wireless remote control units can operate one or more receivers up to 600 feet. Contact input transmitters include a terminal strip that accepts one, four, eight or 20 dry contact inputs from any external relay or switch.
They are commonly used in applications requiring automatic activation upon contact closure. Lid-mounted pushbuttons can be added for manual activation. These stationary units are powered by 100-250VAC, 9-36VDC or internal 3VDC batteries.
Our systems offer a cost-effective solution in applications where running electrical cables is impractical, impossible or too expensive. To see product options, view the Contact Input Transmitter Product Guide.
- Up to a 600-foot operating range
- One, four, four including stop, eight or 20 channels
- Operates on 2.4 GHz band
- Eight independent network frequencies
- AC, DC or battery-powered
- Can operate multiple receivers
- Proudly manufactured in the USA
- Read the BWI Eagle FAQs
- Works with Air-Eagle SR Plus Receivers
- View the Contact Input Transmitter Product Guide to see product options
-
User Manuals
-
Configuration Sheets
Frequency
2.4 GHz spread spectrum
Input Channels
One, four, four including stop, eight or 20 dry contact inputs
RF Network
Eight independent network frequencies
Operating Range
Standard operating range up to 600 feet
RF Output Power
60 mW
Operating Temperature
-40° F to +185° F (-40° C to +85° C)
Housing & Protection
Varies by model
- IP66-rated, (NEMA 4, 12, 13) polycarbonate enclosure
- Hinged fiberglass with window (NEMA 4, 12, 13) enclosure
Power
AC, DC and battery-powered models
Frequently Asked Questions
Latching Stop Button
Available on the four-channel model only
Custom Hardware
Lid-mounted pushbuttons, switches and other hardware can be added
