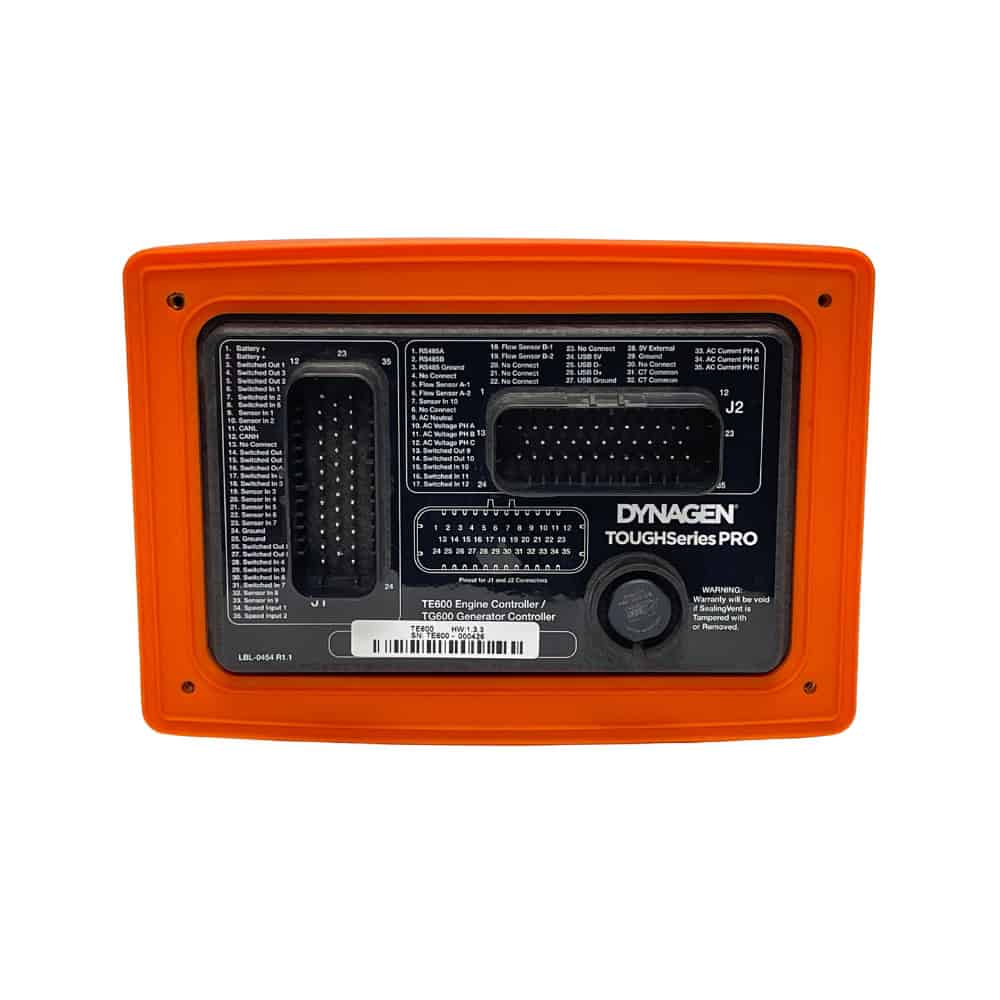

The DynaGen™ PRO600 provides engine and generator control for autostart or manual operations on mechanically or electronically governed engines. The TE600 and TG600 engine and generator controllers offer CANbus and Modbus communication, 22 inputs and 10 outputs. Each controller is ideal for use in extremely harsh environmental conditions.
- Supports all major diesel and spark engines
- Tier 4F and Euro Stage V compliant
- IP67-rated enclosure
- NFPA 110 compatible
- Supported by RapidCore™ configurator software
- Private label option
-
Datasheets
-
User Manuals
-
Installation Manuals
-
Wiring Schematics
-
Flyers
-
Accessory Sheets
-
Solution Cards
-
Firmware
-
Product Videos
Protection
IP67-rated
Housing
- Conformally coated for protection against moisture and contaminants
- Front panel gasket for panel water ingress protection
Display
- Sunlight readable
- Oil pressure and engine temperature
- Fuel and oil levels
- Hour meter
- RPM
- Battery voltage
- Real time clock with date/time
- J1939 DTC codes
- DPF and DEF status icons
- J1939 percent load and percent torque
RapidCore Software
The easy-to-use software interface allows you to set up your controller, adjust configurations, customize CANbus settings and download diagnostic details. Download the latest software version.
Autostart
Manual and remote start, and autostart trigger on sensor value (pressure, temperature, level, voltage)
Speed Control
- Front panel RPM adjustment buttons
- Full electronic variable speed control over J1939
- Configurable remote bump speed control
- Configurable ramping control with 3 set points: idle, intermediate and goal RPM
- Adjustable min/max RPM limits
Functions
- Built-in weekly scheduler
- Maintenance counter
- Configurable Diagnostic Trouble Code (DTC)
- Manual and automatic modes
- Full selection of timers and long-run function
- Configurable or replaceable buttons with custom text
- Custom Programmable Logic (see page 42 of the user manual)
Closed Loop Control
Closed loop control using feedback from sensors such as level and pressure
Communications
- CANbus J1939
- Modbus RS-485
Inputs / Outputs
10 analog inputs, 12 digital inputs and 10 switched outputs
ISO Certification
Manufactured in an ISO 9001:2015 certified operation
Monitoring
RemoteIQ remote monitoring and control available with cellular modem
