The Tyro™ 2X2 delivers efficient wireless remote control for essential lifting applications. Designed for small overhead cranes and hoists, jib cranes and monorail systems, it combines straightforward functionality with fast deployment and dependable performance.

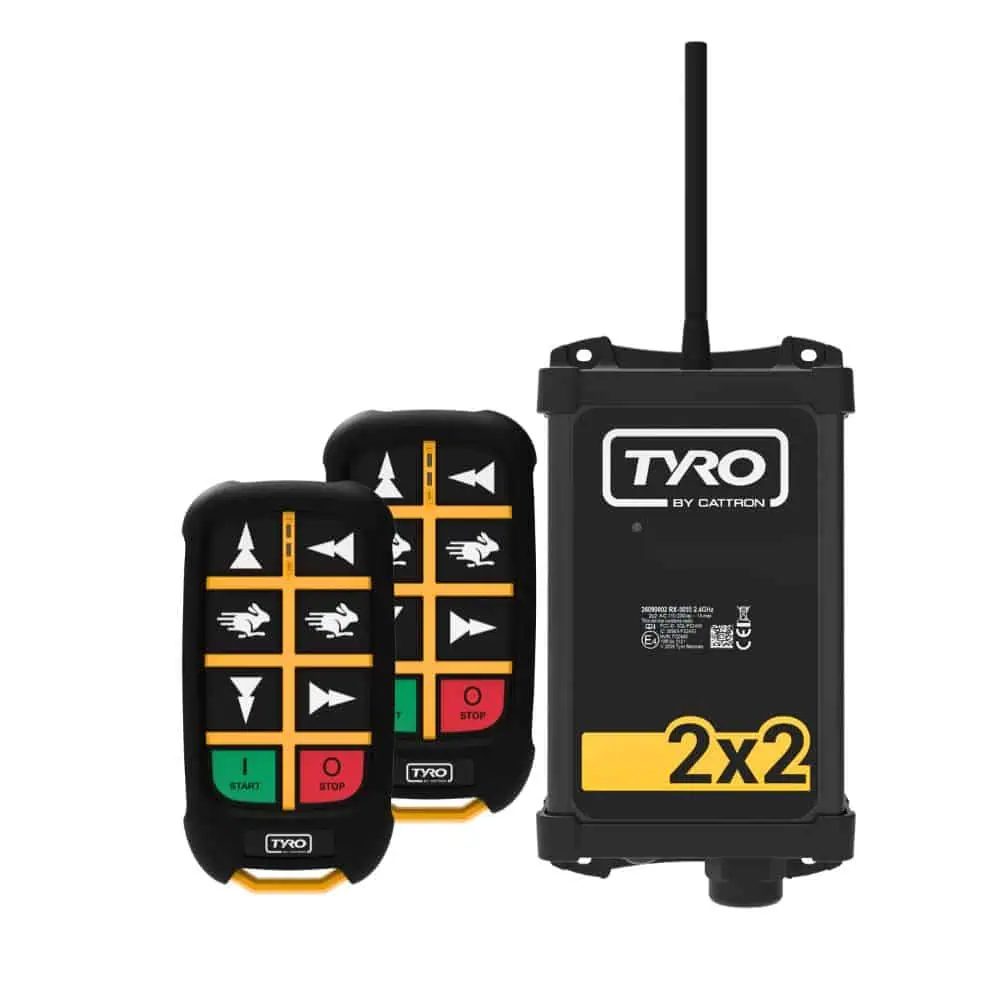

The package includes one receiver and two lightweight, compact Musca 2S transmitters with tactile pushbuttons, a backlit keyboard and an IP67-rated rubber housing. Built on the proven Tyro Remotes portfolio, the 2X2 gives operators precise control over up to two motions with two-speed operations, without complexity. There are four transmitter configurations available for motion and speed operations: 2X2, 1X2, 2X1 and 1X1.
The plug-and-play solution with wireless pairing enables quick installation in under 15 minutes while adaptive frequency protocols provide stable, interference-resistant communications. The low-profile receiver is UL 94-V0 rated for flame resistance and flexible installation. The package is also a CSA Certified Product C22.2 #33:2023.
- IP67-rated Musca 2S transmitter
- IP65-rated receiver
- Up to two motion, two-speed operations
- Up to six pushbuttons plus start/stop
- Two LEDs with a backlit keyboard
- 2.4 GHz with frequency hopping
- CSA Certified Product C22.2 #33:2023
- Package includes two transmitters and one receiver
-
Datasheets
-
Quick Start Guides
-
Configuration Sheets
-
Flyers
Protection
- IP67-rated transmitter – Read about IP ratings
- IP65-rated receiver
Housing
- Transmitter: impact-resistant and shock-absorbing rubber
- Receiver: high-impact polymer
Button Layout
- Up to six pushbuttons plus start/stop with two LED
Backlit Keyboard
An automatic backlit keyboard ensures optimal and safe use day and night
Configurations
- 2X2: Two motion, two speed
- 2X1: Two motion, one speed
- 1X2: One motion, two speed
- 1X1: One motion, one speed
Frequency
- 2.4 GHz with frequency hopping
Communication Mode
Simplex
Battery
- Two standard 1.5V AA alkaline batteries
- Six-month battery life with typical use
Power
Receiver: 24-48 VDC or 110-230 VAC
Safety & Compliance
- FCC
- UL 94-V0
- CSA C22.2 #33:2023
Antenna
- Transmitter: integrated antenna
- Receiver: external; line kit options available
Private Label
Ability to customize the label of the transmitter and receiver to include your brand logo
Accessories
- Lanyard
- SMA Antenna
- Antenna line kits (3 and 6-foot cables)
- Magnet mounting kit
