Cattron’s Excalibur-E is the next generation of industrial radio remote control, purpose-built for demanding applications such as overhead cranes, hoists, winches, and other heavy-duty mobile equipment. Engineered with the ergonomic legacy of the original Excalibur and enhanced with cutting-edge technology, it delivers robust performance, advanced safety, and superior operator control in harsh industrial environments.
Choose from six or eight positive two-step pushbutton configurations with standard or customizable layouts. The Excalibur-E operates across multiple global frequencies, minimizing interference and ensuring dependable communication worldwide. It is designed to meet PL-d safety levels through black channel communication and is easily configurable using the CattronLink™ software management tool.
Multiple receiver options include the CT24, 17R, CBMCU and XBMCU. When paired with the XBMCU, CBMCU or 10R/17R, the Excalibur-E is PROFINET lab-certified for real-time data handling, reliable Class C Conformance and complies with the Cyber Resilience Act.
- IP65-rated housing

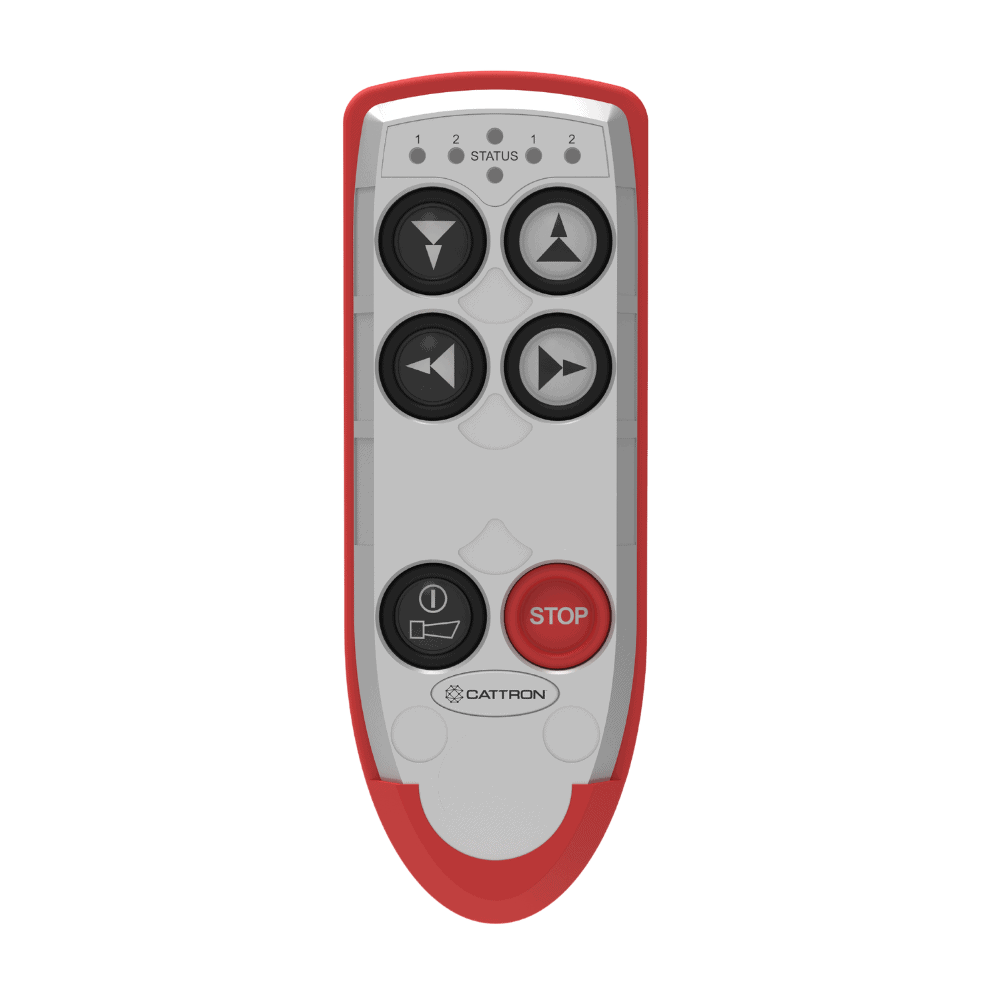

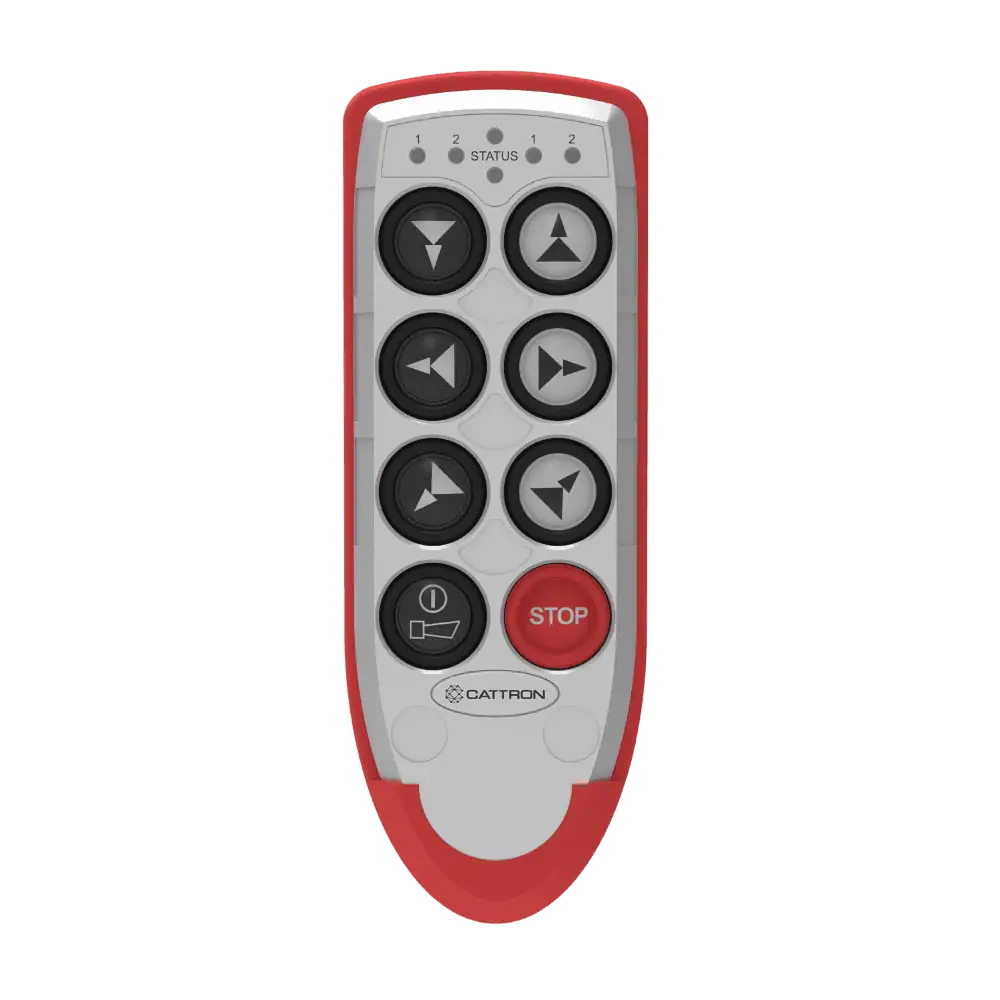

- Six or eight-button configuration
- Positive, two-step pushbuttons
- Six PL-d safety functions plus SIL 2-rated PL-d E-stop
- Tandem or multi-transmitter and/or receiver operation
- CattronLink™ software management tool
- Lab-certified PROFINET communications (with XBMCU, CBMCU, 10R/17R)
- Complies with the Cyber Resilience Act (with XBMCU, CBMCU, 10R/17R)
- Works with the CT24, 17R, CBMCU and XBMCU receivers
-
Datasheets
-
User Manuals
-
Quick Start Guides
-
Configuration Sheets
-
Flyers
-
Related Pages
Protection
IP65 – Read about IP ratings
Housing
Impact-resistant polymer and rubber
Operating Range
- Sub-GHz: 500 feet / 150 meters line-of-sight
- 2.4 GHz: up to 600 feet / 180 meters line-of-sight
Frequency
- License exempt: 915MHz, 433MHz, 868MHz, 2.4GHz
- Licensed: 450-470MHz
Battery Type
Rechargeable, NiMH 3.6V / 1500 mAh
Enhanced Status Indicators
Up to six multi-function LEDs for status and feedback
Safety
Six PL-d safety functions plus SIL 2-rated PL-d E-stop
Black Channel Communications
PL-d safety based on black channel telegram for both control and feedback and a redundant dual-processor architecture
CattronLink Management Software
CattronLink enables continuous performance and simplifies configuration and feature upgrades
Closed Box Configuration
Wireless configuration of frequency and function enables simple and rapid deployment of spares
RFID Security and Rapid Configuration
Allocate user ID security and “as needed” reconfiguration of the operator control unit to a specific machine
Diagnostic Data Collection
Data and diagnostics are logged and available
Compliance
- EN 13849-1 Category 3 PL d
- EN 60204-1
- EN 60204-32
- CE Compliant
- RED compliant
- PROFINET (when paired with XBMCU, CBMCU or 10R/17R)
- Cyber Resilience Act compliant (when paired with XBMCU, CBMCU or 10R/17R)
ISO Certification
Manufactured in an ISO 9001:2015 certified operation
Labels
Standard or custom label sheets are available
Holster
Optional leather holster
Battery Adapter
Standard desk or wall mount adapter with rechargeable batteries
