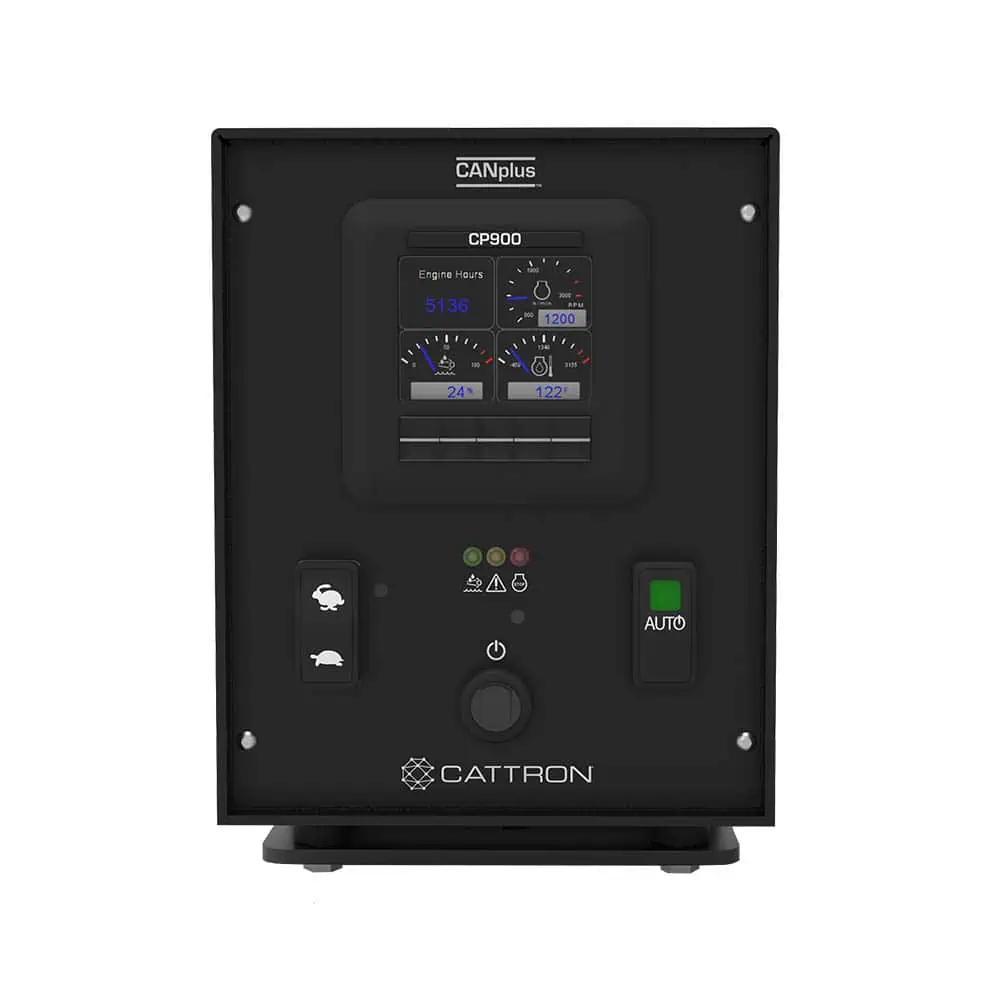

The CANplus™ CP900 is a digital engine control panel with nine inputs. It supports electronically and mechanically governed engines for manual or autostart operations. It is typically used for less demanding pump control applications that need to measure floats, discharge pressure and water level.
- 9 inputs: 5 for engine control and 4 for autostart operations
- CANplus™ Control advanced throttling capabilities
- Service diagnostics through RemoteIQ™ QR-Assist
- Tier 4F and Euro Stage V compliant
- 3.5" high-resolution color display
-
Datasheets
-
User Manuals
-
Installation Manuals
-
Wiring Schematics
-
Accessory Sheets
-
Firmware
-
Software
-
Support Videos
- CANplus CP900 Rotary Mouse
- CANplus CP800 & CP900 Dual Float Empty Setup & Demonstration
- CANplus CP800 & CP900 Import Export Configurations and Software Upgrade
- CANplus CP900 Auto/Manual Mode Toggle
- CANplus CP900 Controlled Off
- CANplus CP900 Throttle by Maintain Point
- CANplus CP800 & CP900 Autostart Dashboard
- CANplus CP800 & CP900 Active Faults and QR codes
- CANplus Tier 4F Euro Stage V Simulation
- RemoteIQ QR-Assist for CANplus Panels
-
Miscellaneous
Housing
Rugged, weather-resistant housings with vibration isolation mounts
Display
Intuitive, user-friendly menus accessible via a high-resolution, color display
Configuration
Simple configuration using menus or through a simple, straightforward Windows-based configuration program
Inputs
Two autostart switch inputs, two 4-20 mA transducer inputs, two fault switch inputs and three resistive sender inputs
Interface
CANplus interface for engine monitoring and control, supporting all SAE J1939 messages
Autothrottle Maintain Point
Configurable 4-20 mA transducer target values to dynamically throttle the engine to maintain a level
Enclosures
Compact 8”x6” Aluflex, Standard 8”x10” Aluflex, Compact 8”x6” NEMA, Standard 8”x10” NEMA
Outputs
Alarm and Aux for engine running, autostart, or engine-at-speed
Autothrottle Profile
Configurable seven-stage, autothrottle profile
Autostart
Configurable start and stop events
Warranty
Two-year limited warranty
ISO Certification
Manufactured in an ISO 9001:2015 certified operation
